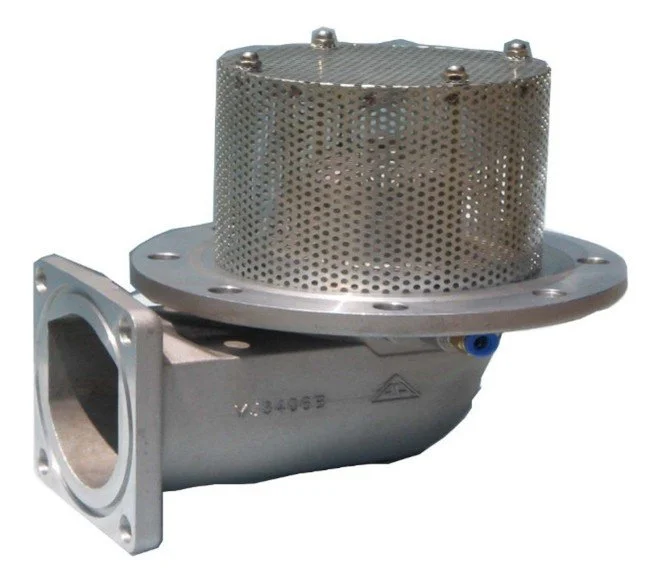

1. Material:
Body: SS
Shaft: SS
Seal: PTFE
Spring: SS
2. Feature:
Improve the flow speed and adopt the easy, convenient structure
Easy install, can automatically cut off in emergency
Use the manual controller to open
Fit EN 13083 and flange TTMA
3. Parameter :
Size - 4"
Flow - 2500L/min
Working pressure - 0.6MPA
operate way - manual
Temperature -20 to 70 ℃
Connect way - flange
Medium - oil
1.Material:
Body: Casting AL alloy
Shaft: SS
Seal: NBR
2.Feature:
Light casting AL structure,high intensity
Used the long service life lift valve surface
Fit API 1004 standard
Easy operate and can install by only one hand
3.Parameter:
Size - 4"
Working pressure - 0.3MPA
Operate way - manual
Temperature -20 to 70 ℃
Medium - oil
1.Material:
Body: casting AL alloy
Shaft: SS
Seal: FPW,NBR
Spring: SS
2.Feature:
Casting AL alloy structure,oxidize treatment
4" NPT/BSNPT internal thread,4" connection
4" flange(TTMA standard)
Reasonable design,3" lift valve
Fit API RP1004 and EN13083 standard
3.Parameter:
Size - 4"
Working pressure - 0.3MPA
Connect way - flange, internal thread
Temperature -20 to 70 ℃
Medium - oil
1.Material:
Body: casting AL alloy
Shaft: SS
Seal: FPW,NBR
Spring: SS
2.Feature:
Casting AL alloy structure,oxidize treatment
4" NPT thread vent
Reasonable design,use the pneumatic switch controller to control
Fit flange TTMA and EN13083 standard
More flow,lower pressure
3.Parameter:
Size - 4"
Flow - 1600L/min
Working pressure - 0.3MPA
operate way - pneumatic
Connect way - flange
Temperature -20 to 70 ℃
Medium - oil

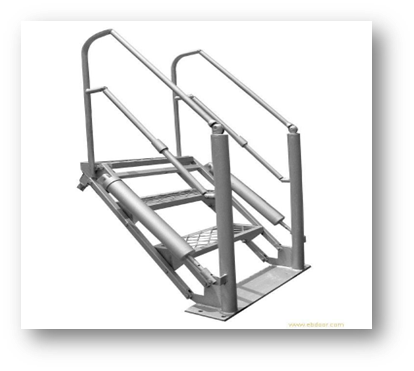

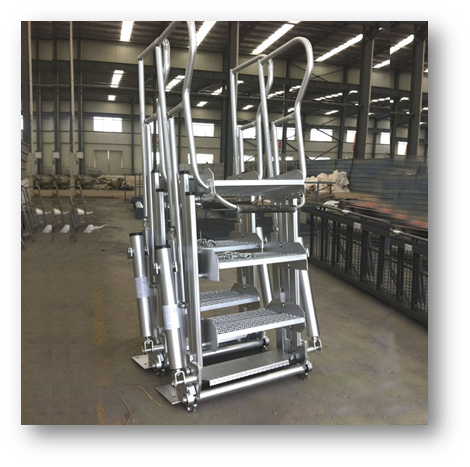

Safe and simple to manipulate, Refuel folding stairs ensure safe access from the loading platform to the truck/tanker.
The folding stairs have a solid-weight design and are built according to the highest safety regulations. They have the following special features:
Covering large height variations;
Galvanized or chemical resistant anti-slip steps;
Minimal wear due to bearing and plastic bedding on all movable parts;
Automatic locking in a stowed position;
No hands or feet can be jammed in any position.
Product information
Basic info:
3 - 4 - 5 - 6 steps
Width: 600 / 800 / 1.000 / 2.000 / 3.000 mm, other sizes on request
Balanced by spring cylinders
Manually operated or by pneumatic or hydraulic cylinders
Engineered for reliable, long-term service in the harshest industrial environments, the Swivel Joint Basic Series combines a straightforward design with premium materials to deliver uninterrupted performance and minimal maintenance. Its robust configuration and easy-access flange seal system ensure extended service intervals, making it the ideal solution wherever downtime must be minimized.
Available in carbon steel, stainless steel, or aluminium (upon request)
Seal options: PTFE, Viton® (FKM), and Buna-N for chemical compatibility
Working pressure up to 5 MPa for heavy-duty applications

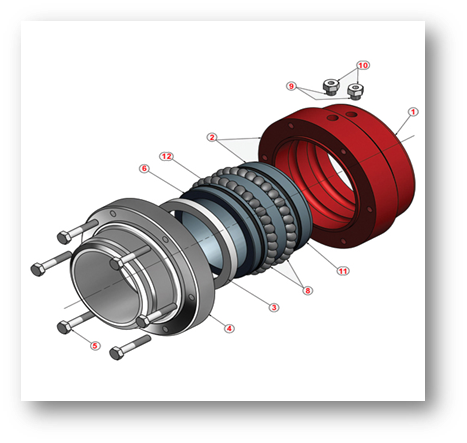

Flange-mounted seal housing enables seal replacement without full disassembly
Hardened and polished ball race for smooth rotation and extended wear life
Grease-nipple lubrication points for simple, on-site maintenance
Optional internal heating jacket to prevent freezing or viscosity-related issues
Standard sizes: 2″, 3″, 4″, 6″, and 8″ (DN 50/80/100/150/200)
Marine loading arms and ship-to-shore transfer systems
Chemical and petrochemical processing manifolds
Mobile refuelling units and tank trucks
High-cycle hydraulic and pneumatic systems
Any installation requiring fresquent rotation under pressure
Parameter
Materials - Carbon Steel; Stainless Steel; Aluminium
Seal Materials - PTFE; Viton® (FKM); Buna-N
Maximum Working Pressure - 5 MPa (725 psi)
Temperature Range–40 °C to 150 °C (seal dependent)
Standard Sizes - 2″ (DN 50); 3″ (DN 80); 4″ (DN 100); 6″ (DN 150); 8″ (DN 200)
Lubrication - Grease via standard lubrication nipples
Rotation Mechanism - Hardened & polished ball race
Optional Upgrades - Internal heating jacket; custom coatings

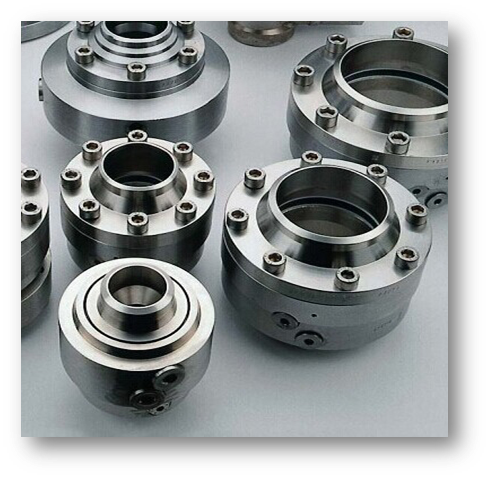

Equip your installation with the Swivel Joint Basic Series to experience rock-solid durability, effortless maintenance, and the flexibility required for demanding fluid-transfer operations.

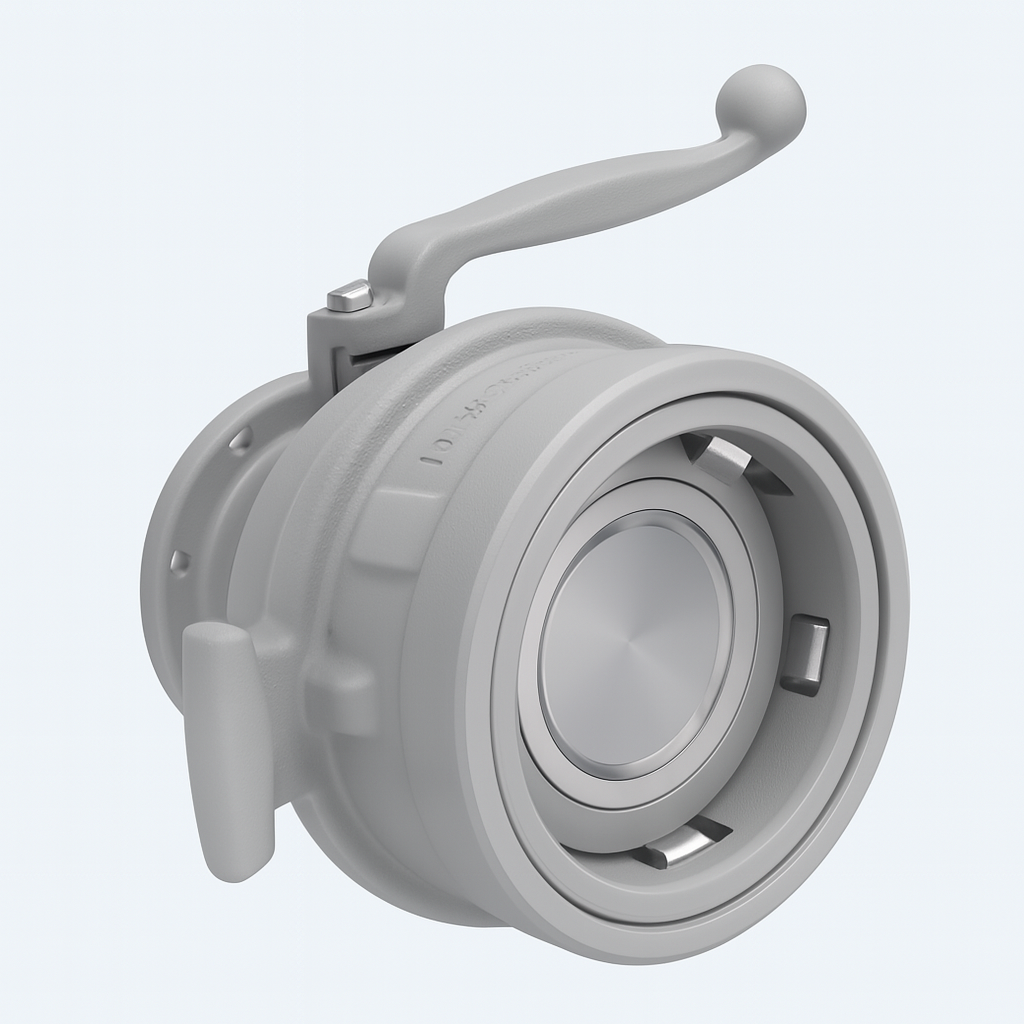

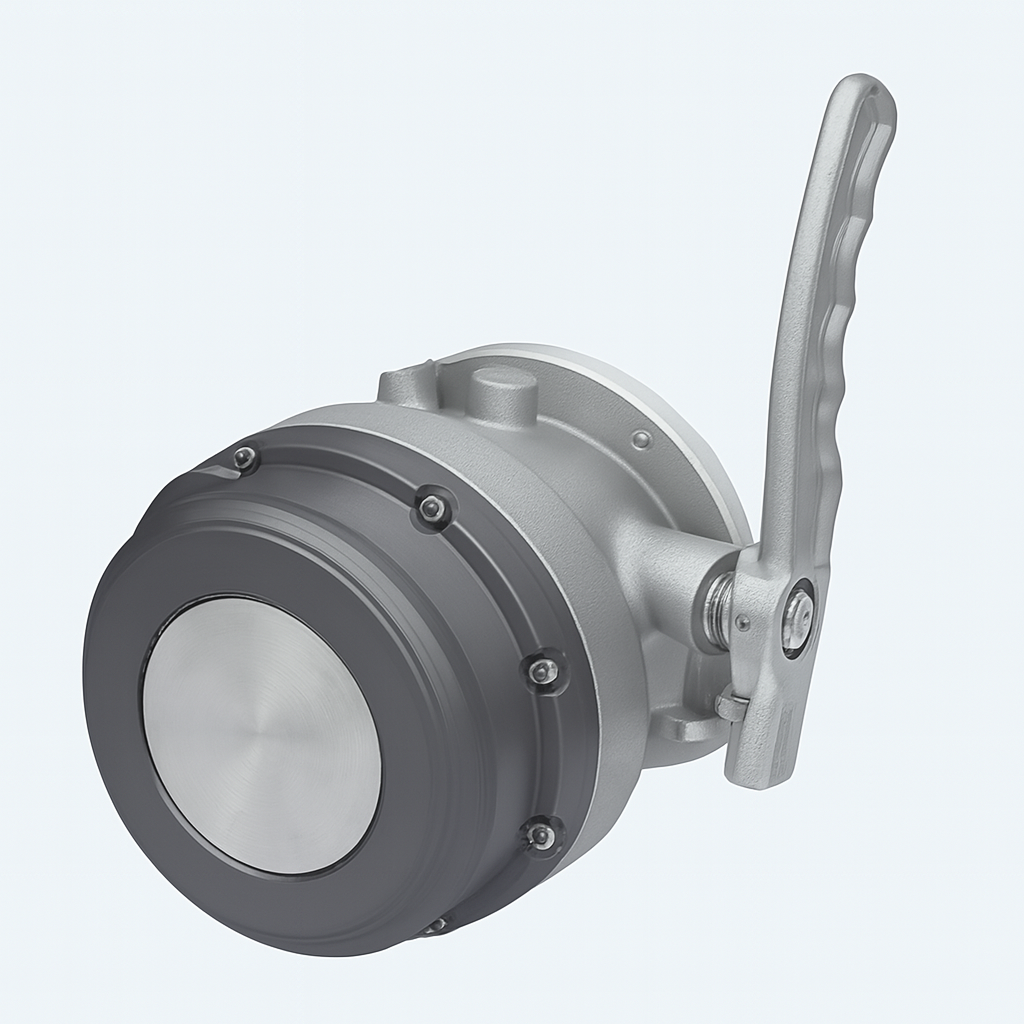

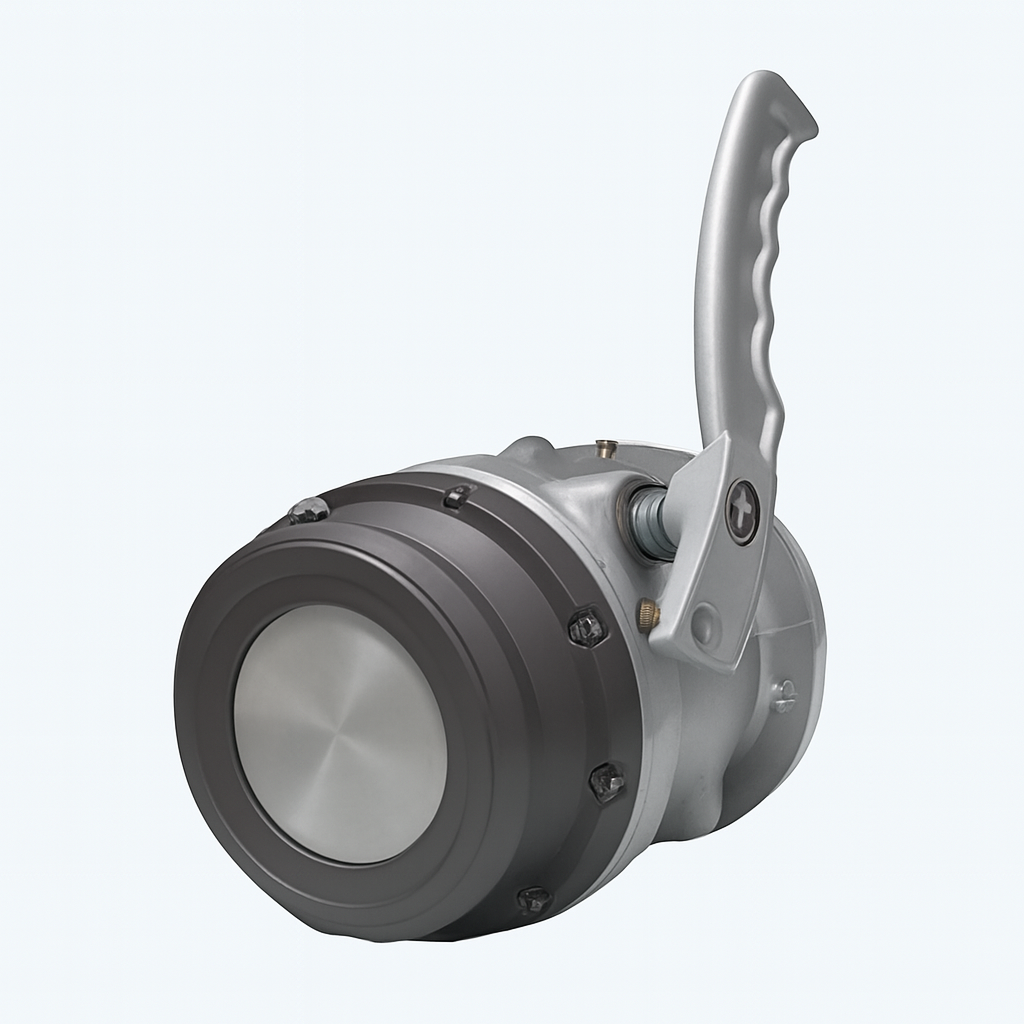

Body: AL alloy
Shaft: SS
Seal: FPM
Lift valve: AL alloy
Handle: AL alloy
Rod: SS
2. Feature:
1) light casting AL, hard treatment
2) Easy and reliable seal design can use efficient double seal gasket
3) Fit API RP1004
4) Only need a single handle to operate
3. Parameter:
Size - 4"
Working pressure - 0.6MPA
Pressure drop - 0.024MPA
Operate way - half automatic
Temperature -20 to 70 ℃
Medium - oil

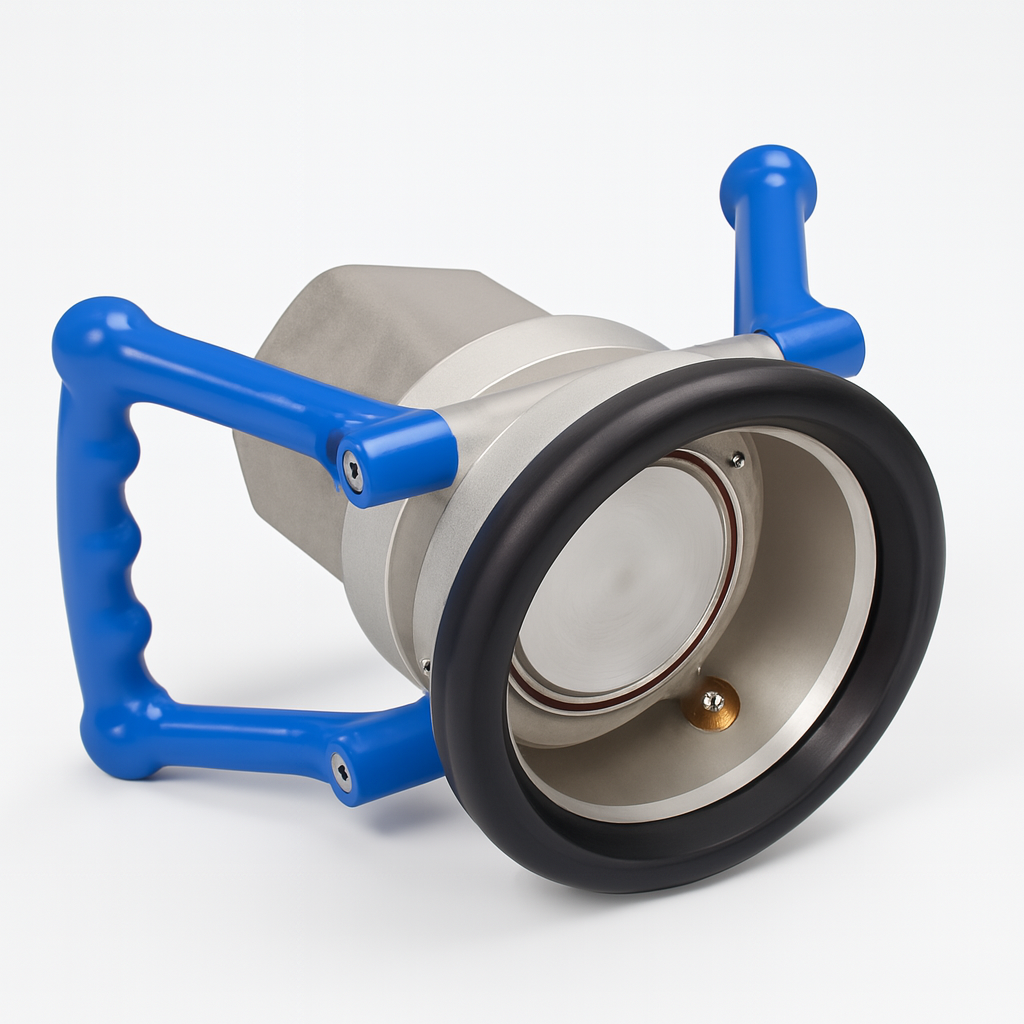

1. Material:
Body: AL alloy
API valve head: hard AL
Lift valve: AL alloy
Seal: FPW and NBR
Operate shaft: SS
2. Feature:
Casting AL structure and using the spring to increase service life
Decrease the fluid line to raise the flow
Easy to change and inside use the SS to prove intensity Fit API1004, EN13083 and flange TTMA standard
3. Parameter :
Size - 4"
Flow - 2500L/min
Working pressure - 0.6MPA
operate way - manual
Connect way - flange
Temperature -20 to 70 ℃
Medium - oil.

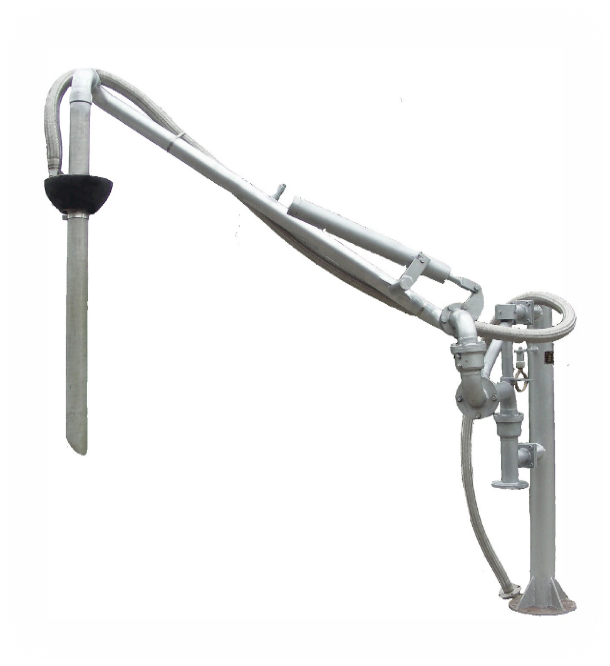

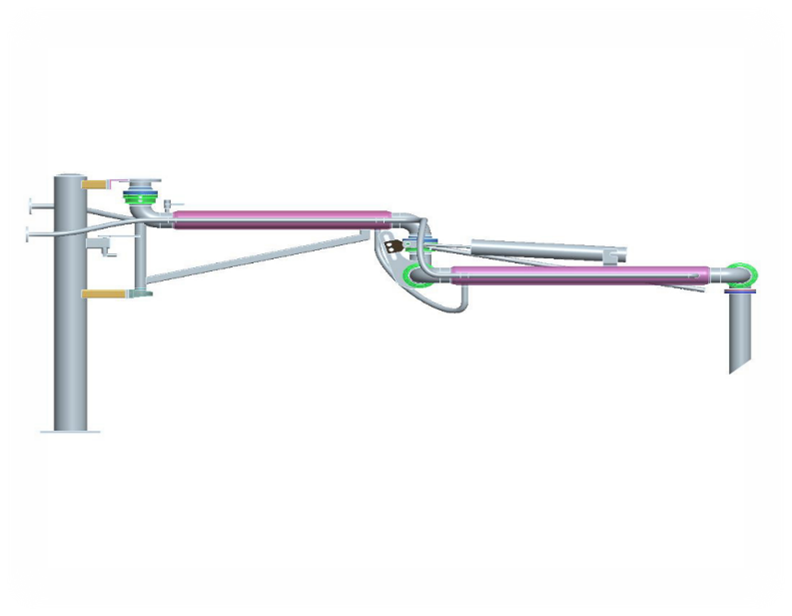

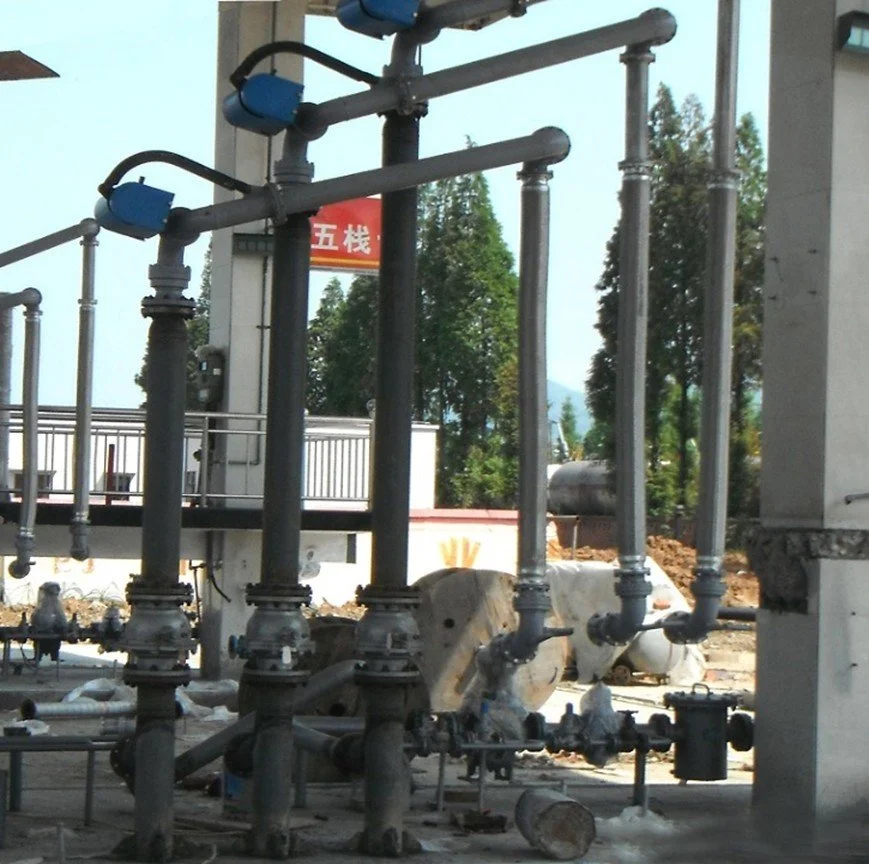

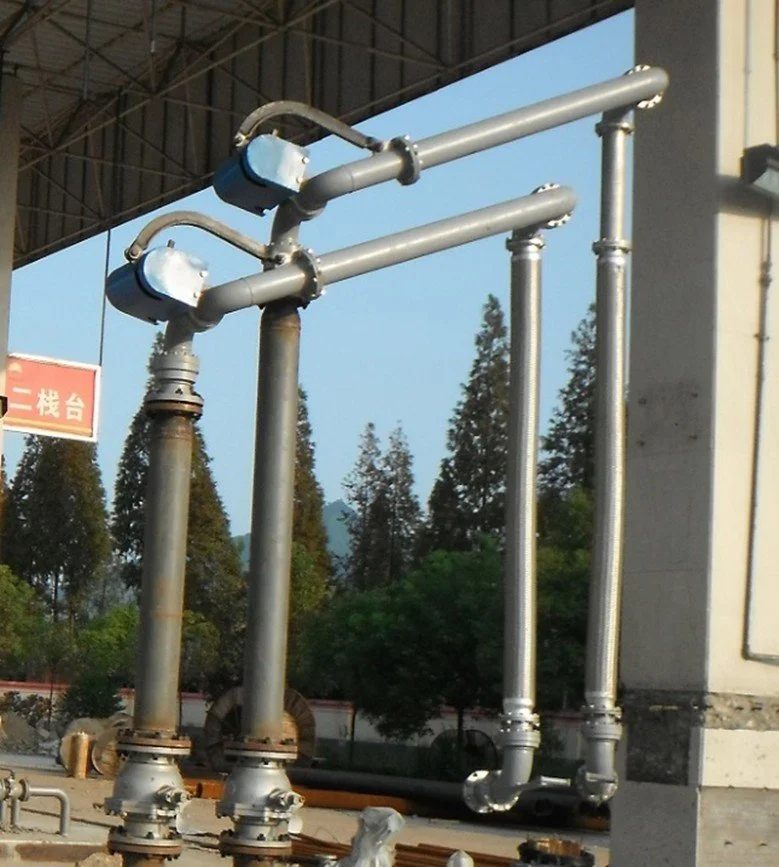

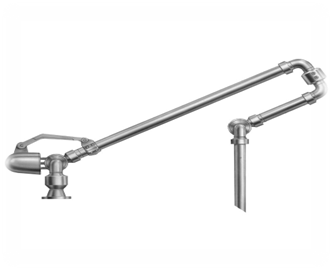

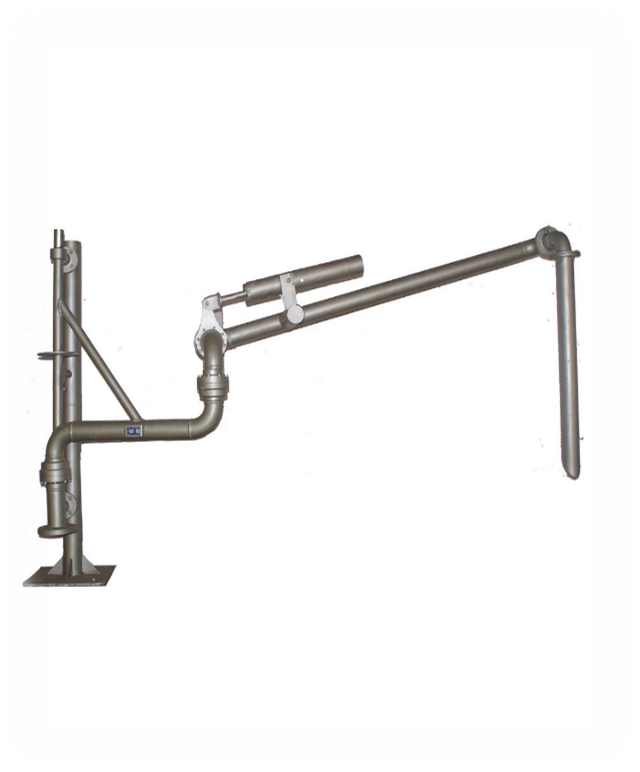

Top loading arms are distinguished by an extra large working area for top loading of road tankers and rail tankers. Their design and construction allow a perfect balance of the loading arm in any position.
This balance can be achieved with counterweights or a spring balance system. By designing the correct
pipe lengths it is possible to charge multi-chamber trucks without even moving the vehicle.
1)Sizes: 2"/3"/4"/6"/8" (DN50/80/100/150/200)
2)Material (depending on the fluid): carbon steel, stainless steel, low-temperature steel
3)Temperature range: -30°C to +230°C
4)Pressure range: 40 bar
5)Balancing system: counterweights, spring cylinder, torsion balancer, hydraulic cylinder
6)Seals: virgin PTFE eventually adding carbon
Design pressure: - 0.08MPa-4.00Mpa
Design temperature:-30° C - +230° C
Application: top loading applications, the connector is upward.
Medium: crude oil, petroleum products and chemicals, etc
Built for the most demanding fluid-transfer applications, the Industrial Loading Arm pairs heavy-duty steel construction with a stainless-steel braided hose to deliver leak-proof durability and multi-axis flexibility. Its robust powder-coated finish withstands corrosion, UV exposure, and abrasion, while precision swivel and pivot joints absorb vessel movement and misalignment—ensuring uninterrupted service in marine, chemical, and mobile refueling environments.
Key Features:
Rugged Construction: thick-wall carbon steel with industrial-grade powder coat for maximum corrosion and wear resistance
Articulated Flexibility: precision-engineered swivel and pivot joints accommodate vessel motion and installation variances
Braided Hose Section: corrugated PTFE core encased in stainless-steel braid for leak-proof performance under pressure and temperature fluctuations
Rapid-Connect Flanges: standard bolt-pattern flanges streamline field fit-up, reducing installation time and downtime
High Pressure Rating: engineered to handle up to 10 bar (145 psi) with built-in safety margin for critical refueling operations
Ideal Applications:
Marine terminals and ship-to-shore transfer systems
Petrochemical and chemical processing plants
Mobile fueling trucks and remote dispensing stations
Technical Specifications:
Model: RIL-1200-BL
Maximum Working Pressure: 10 bar (145 psi)
Hose Length: 1.5 m (59 in) braided stainless-steel section
Materials: carbon steel (EN 10025), PTFE core, stainless-steel braid
Operating Temperature: –40 °C to 150 °C
Ingress Protection: IP65
Reliable Power Delivery for Fuel Dispensing Systems
Engineered for durability and precision, the Wayne 3G Power Supply Unit provides stable, uninterrupted power to critical fuel dispensing components. Its rugged enclosure and streamlined design make it ideal for high-demand environments where reliability is non-negotiable.
Key Features:
Stable Output Performance: Designed to maintain consistent voltage and current levels across fluctuating load conditions.
Industrial-Grade Housing: Matte-finished metal casing with sealed cable glands ensures protection against dust, moisture, and vibration.
Easy Integration: Compatible with Wayne 3G series components and standard mounting configurations for quick installation.
Brand Assurance: Backed by Wayne’s legacy of innovation and trusted performance in fuel technology.
Applications: Perfect for fuel stations, industrial pump systems, and remote dispensing setups requiring dependable power management.
Specifications:
Input Voltage: 100–240V AC
Output Voltage: 12V / 24V DC (model dependent)
Protection: Overload, short-circuit, thermal shutdown
Enclosure: IP65-rated metal housing
Dimensions: 160mm x 120mm x 70mm
Precision Monitoring for Fuel Dispensing Systems

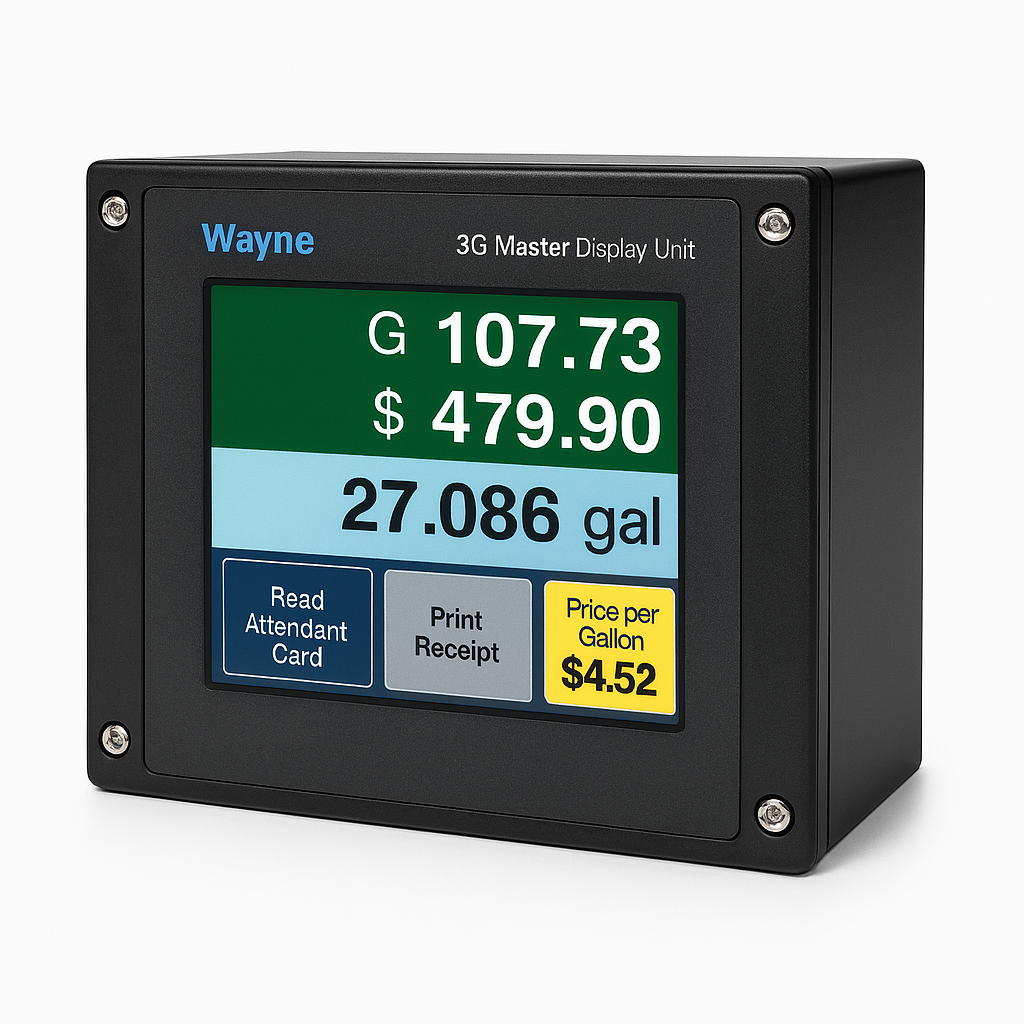

The Wayne 3G Master Display Unit is a high-performance interface engineered for modern fuel management environments. Housed in a robust, matte-black enclosure, this unit delivers real-time transaction data with exceptional clarity and reliability.
Key Features:
✅ High-Visibility LCD Display: Color-coded sections for fuel volume, cost, and pricing ensure quick, intuitive readability—even in outdoor lighting conditions.
✅ Multi-Function Interface: Includes touch-activated options for attendant card reading, receipt printing, and price-per-gallon display.
✅ Durable Construction: Industrial-grade housing with reinforced corners and flush-mounted screws for long-term resilience in demanding environments.
✅ Wayne Certified: Backed by Wayne’s legacy of precision engineering and global reliability.
Applications: Ideal for fuel stations, industrial fueling depots, and integrated pump systems requiring centralized transaction visibility and control.
Specifications:
Display Size: 5.7" Color LCD
Input Voltage: 12–24V DC
Communication: RS-485 / Ethernet
Mounting: Surface or panel mount
Dimensions: 180mm x 150mm x 80mm
“Engineered for Accuracy. Trusted Across Africa.”

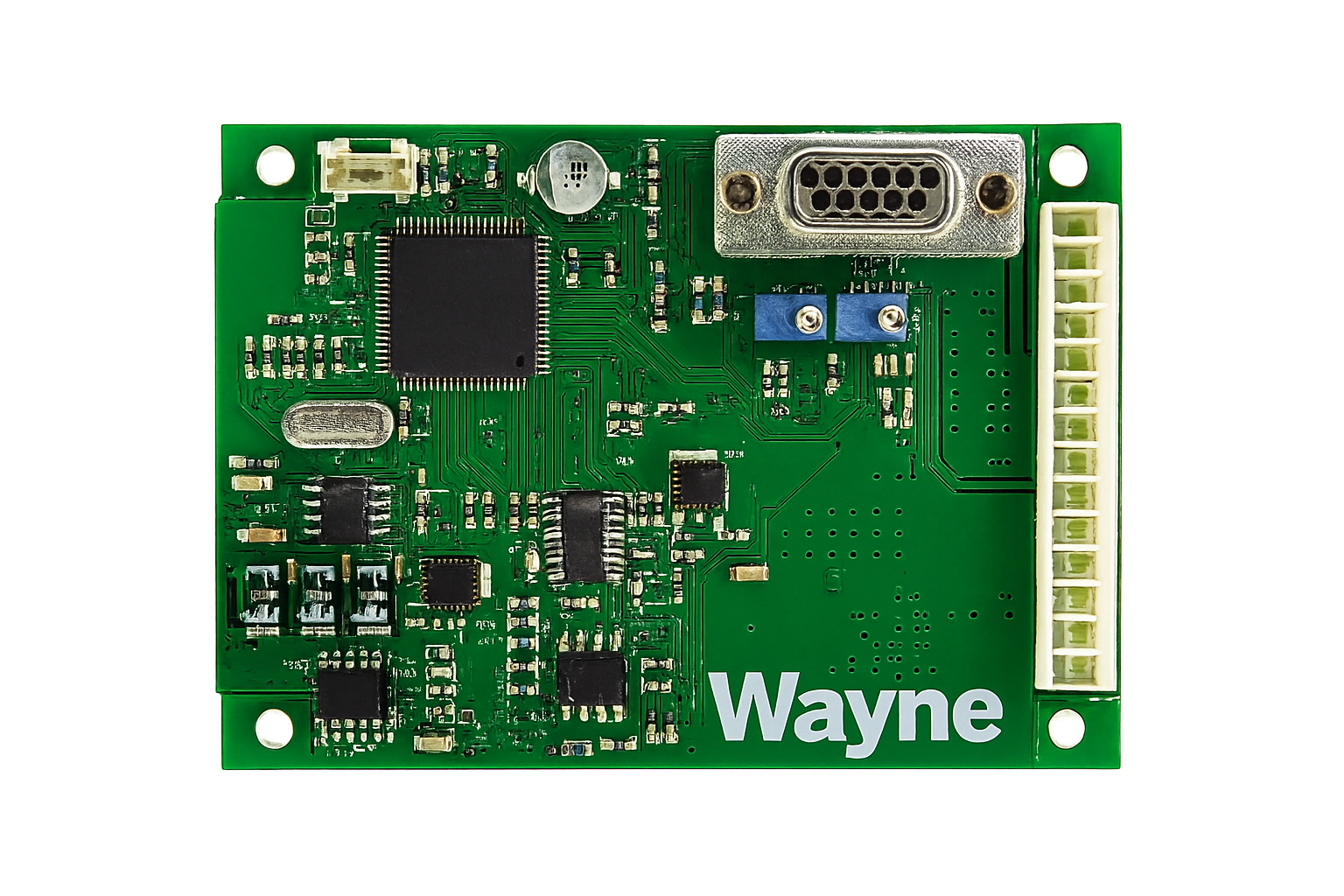

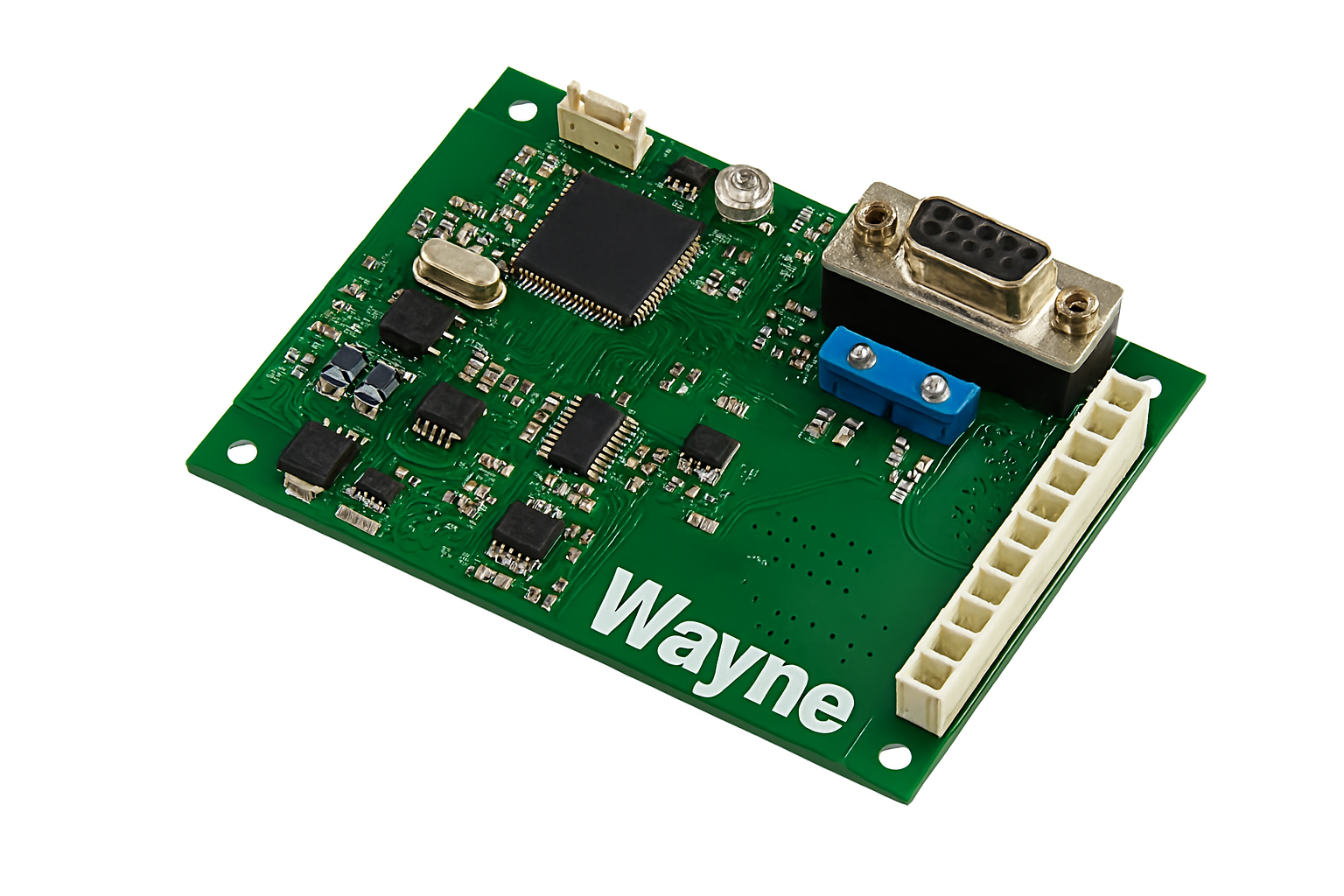

The Wayne 3G Computer Board is the intelligent control center for modern fuel dispensers. Designed for reliability and rugged performance, it ensures accurate transaction processing and seamless integration with POS systems. Ideal for East African fueling environments, this board delivers consistent uptime and diagnostic flexibility.
Key Features
• ✅ High-Speed Processing for real-time pump control
• ✅ Multi-Port Connectivity: RS-485, D-sub, and terminal block options
• ✅ Industrial-Grade PCB with reinforced soldering and protective coating
• ✅ Field-Ready Diagnostics: Adjustable potentiometers and test points
• ✅ Tamper-Resistant Firmware for secure operations
Applications
• Fuel dispenser control systems
• POS integration for retail fueling stations
• OEM replacements and upgrades

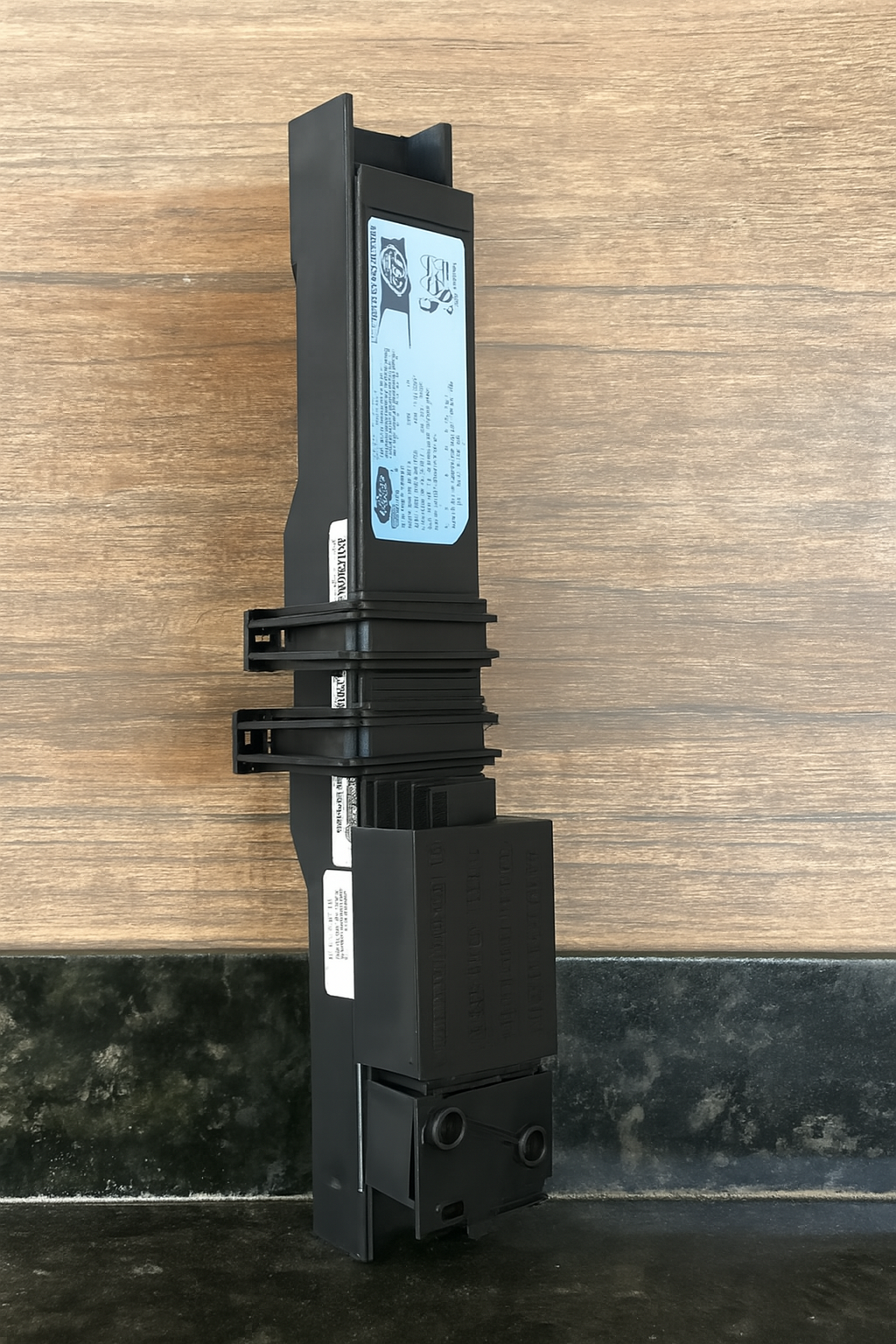

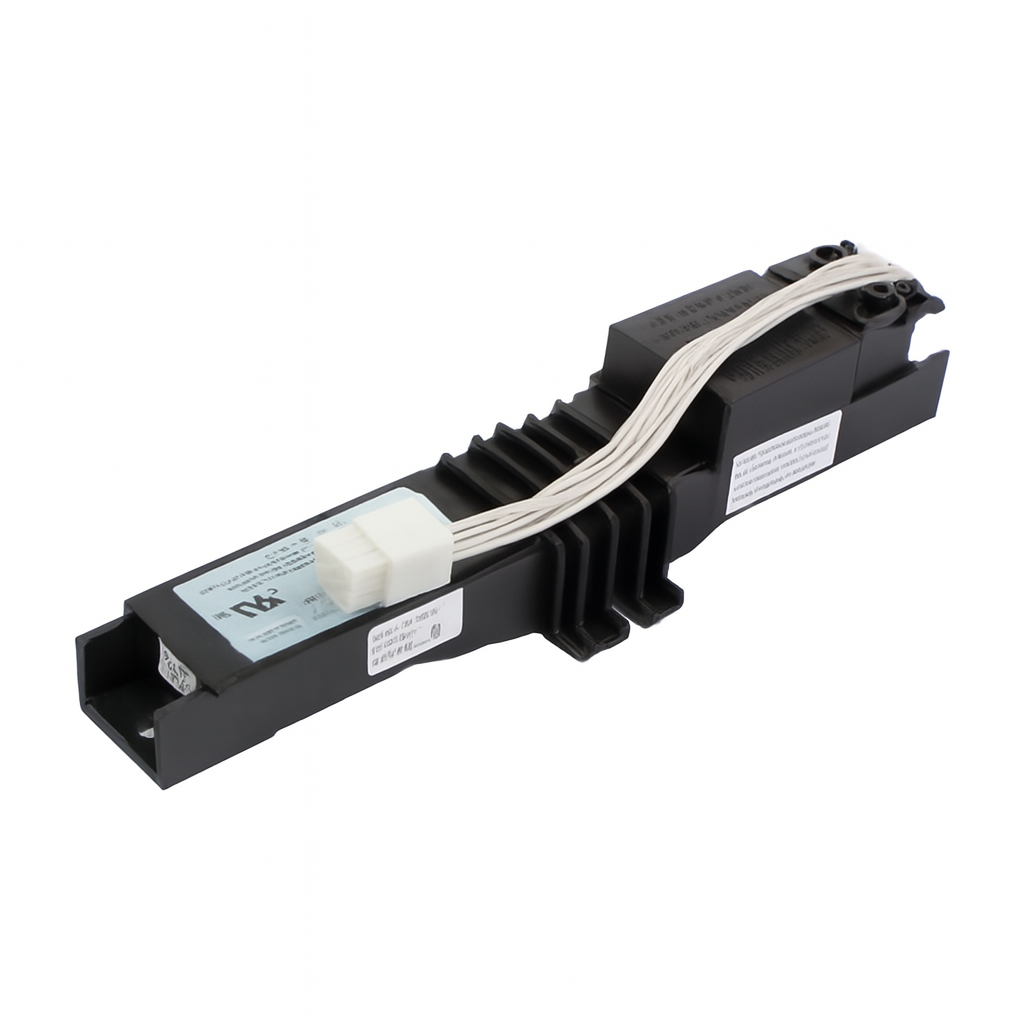

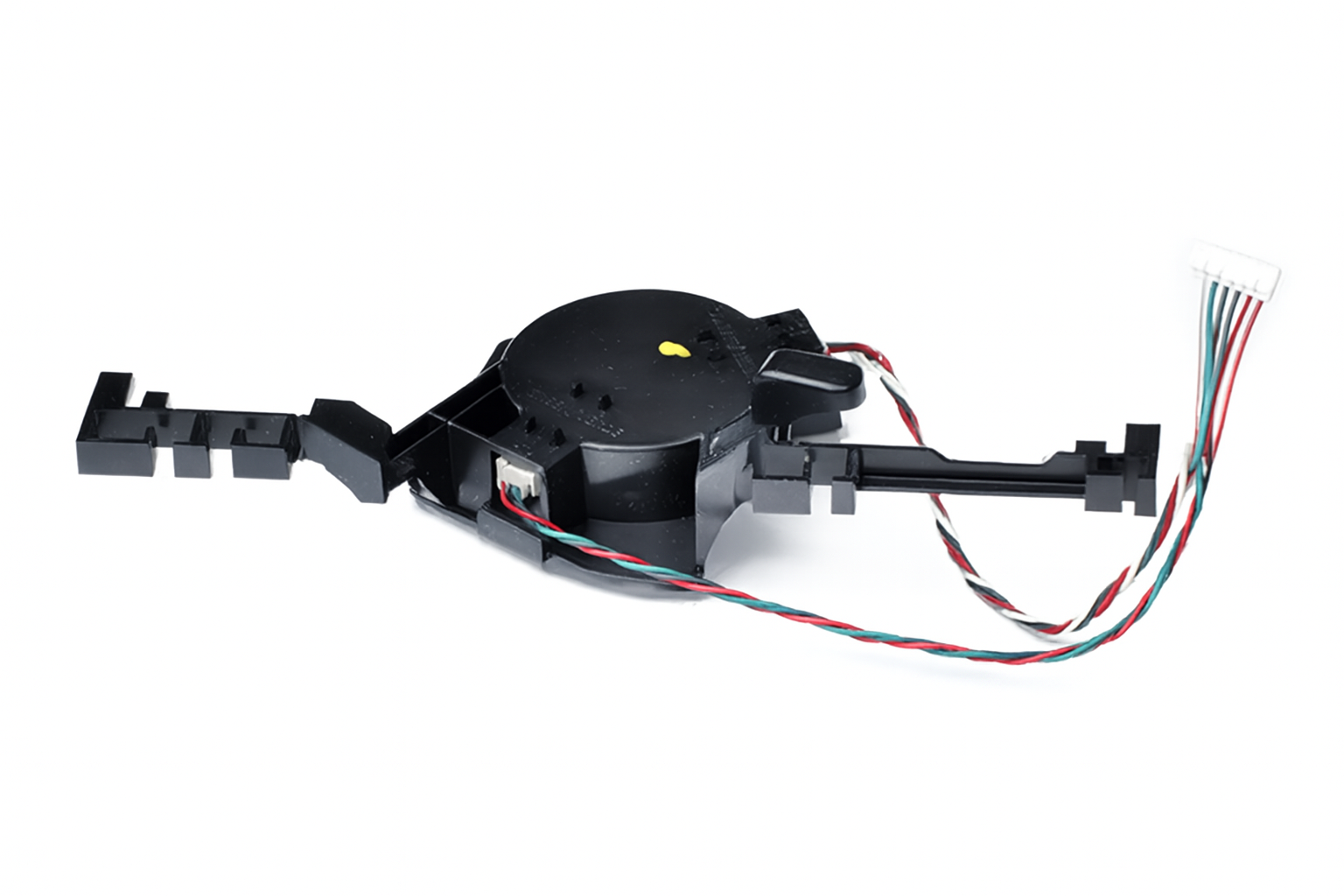

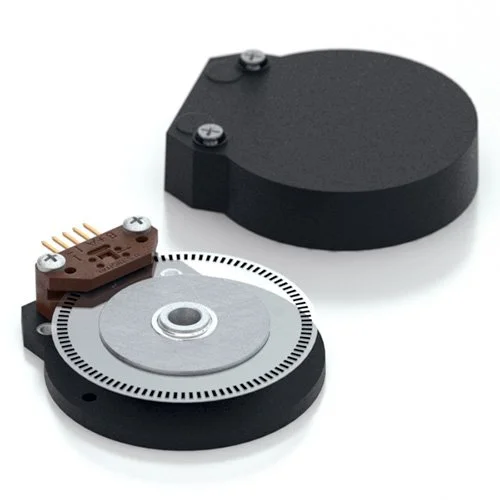

The Wayne 3G Optical Encoder Unit is a precision-engineered pulser designed to convert mechanical rotation into high-resolution digital pulses for fuel metering. Built for integration into Wayne Ovation and Vista dispensers, this intelligent encoder ensures accurate transaction data and seamless communication with POS systems and forecourt controllers.
Whether you're upgrading legacy dispensers or building a new fueling site, this unit delivers unmatched reliability, security, and performance.
Key Features
• Optical Pulse Technology: Converts mechanical motion into clean, interference-free digital signals.
• High Resolution Output: Supports accurate fuel volume tracking for retail and fleet applications.
• Tamper-Resistant Design: Fully enclosed housing protects internal components from environmental and manual interference.
• Plug-and-Play Wiring: Comes with pre-configured connectors for fast installation and minimal downtime.
• OEM Certified: Genuine Wayne component ensures full compatibility and long-term reliability.
Compatibility
• Wayne Ovation Series
• Wayne Vista Series (2/Vista, 3/Vista, 4/Vista)
• IGEM Forecourt Controllers
• POS Systems with TTL Pulse Input
Applications
• Fuel dispenser metering
• POS integration
• Forecourt automation
• Fuel theft prevention diagnostics
Why It Matters
In East African fueling environments where accuracy and uptime are critical, the Wayne 3G Optical Encoder Unit offers a dependable solution for modernizing dispenser infrastructure. Its intelligent design reduces service calls, improves transaction integrity, and supports seamless integration with digital systems.

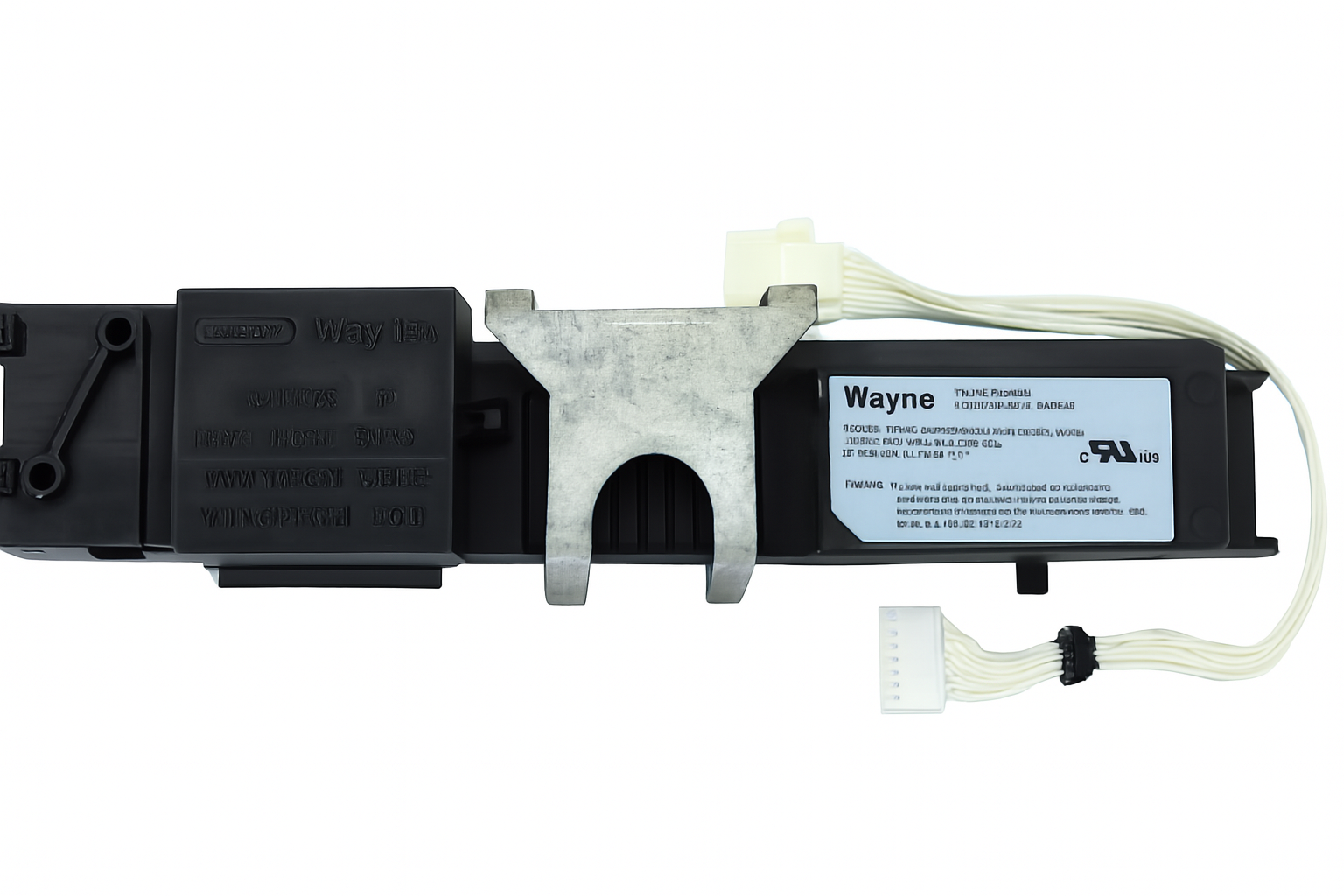

The Wayne 3G IGEM Pulser is a factory-engineered, intelligent encoder designed for high-precision fuel metering in Wayne Ovation and Vista series dispensers. Built to integrate seamlessly with POS systems and forecourt controllers, this pulser delivers reliable, high-resolution pulse output for accurate transaction tracking in demanding retail fueling environments.
Key Features
OEM Certified: Genuine Wayne component for guaranteed compatibility and performance.
Advanced Pulse Accuracy: Supports high-resolution output for precise fuel volume measurement.
Secure Design: Eliminates exposed gears and shafts, reducing risk of tampering and fuel theft.
Durable Build: Engineered for rugged outdoor conditions with long-term reliability.
Plug-and-Play Integration: Comes with pre-configured cables for quick installation into Wayne dispensers.
Compatibility
Wayne Ovation
Wayne 2/Vista
Wayne 3/Vista
Wayne 4/Vista
Replaces part numbers: 004-921469, 004-921087, 165560
Applications
Retail fuel dispensers
Forecourt automation systems
POS integration for fuel metering
Fuel theft prevention and diagnostics
Why Choose the Wayne IGEM Pulser?
This pulser is trusted by fuel station operators worldwide for its precision, security, and seamless integration. Whether you're upgrading legacy systems or building a new forecourt, the Wayne IGEM Pulser ensures your transactions are accurate and protected.
1.Material:
Body: AL alloy
Shaft: SS
Seal: FPW
2.Feature:
Light casting AL structure, has high intensity
Easy operate and connect rapidly
Can efficiently reduce the leakage
Can not open lift valve when connect wrongly
3.Parameter:
Size - 3"
Working pressure - 0.3MPA
operate way - manual
Connect way -Thread connection 3" BSP
Medium - oil
Temperature -20 to 70 ℃

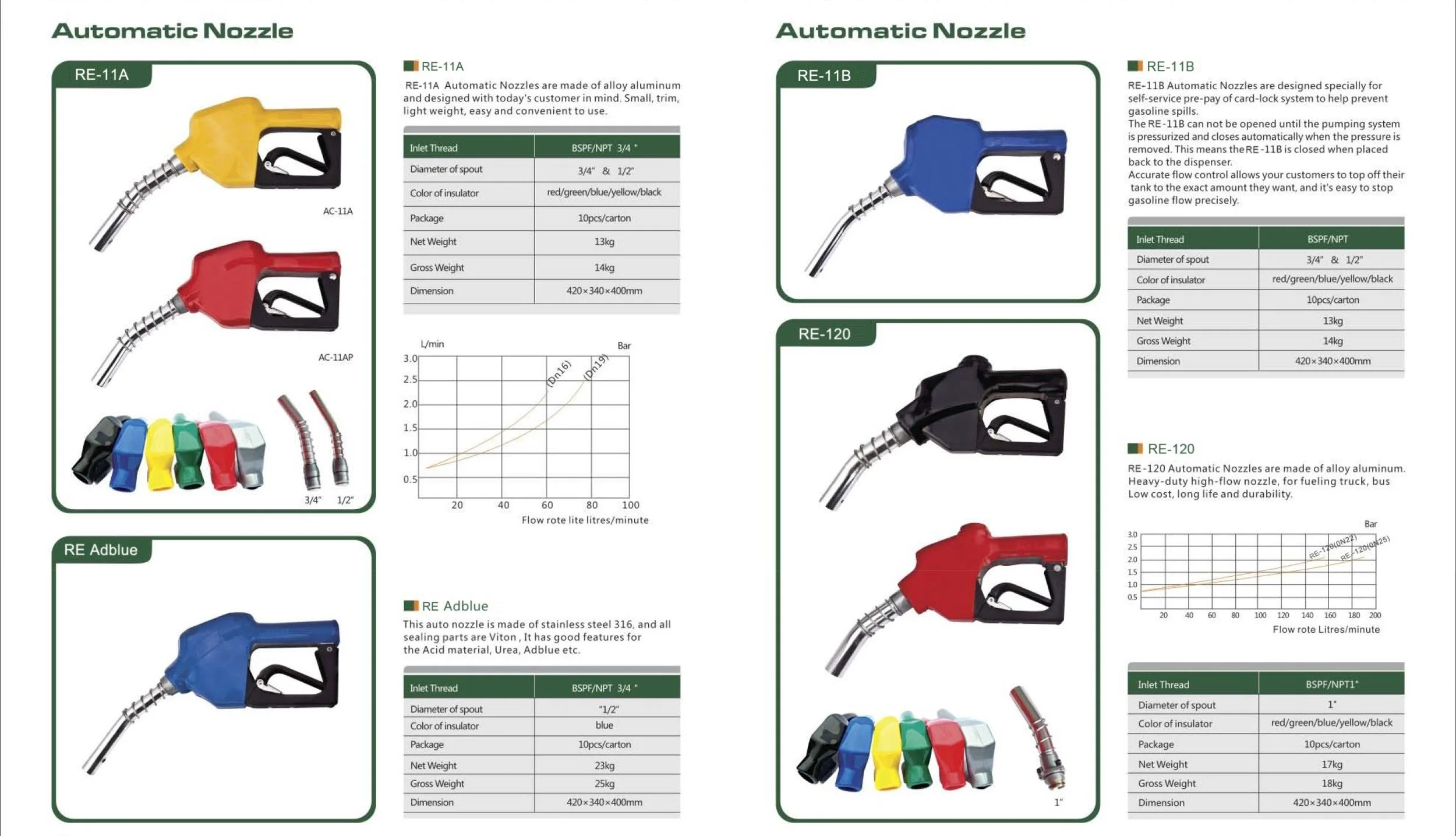

Automatic Fuel Nozzles
RE Series (RE-11A, RE-11B, RE-120, RE Adblue)
Compact and color-coded for easy identification, these automatic shut-off nozzles are ideal for standard fueling operations.
• Inlet Thread: BSP/NPT ¾" or 1"
• Spout Diameter: 13/16" to 1"
• Colors: Yellow, Red, Blue, Black
• Flow Rate: Optimized for low to mid-pressure systems
• Application: Diesel, gasoline, AdBlue
RE-BADA, RE-ZVA80, RE-ZVA120
German-inspired design with leak prevention and ergonomic handling.
• Flow Rate: 0–60L/min to 0–120L/min
• Working Pressure: 0.18MPa
• Spout Diameter: 20mm to 23.5mm
• Application: Diesel, kerosene, gasoline
RE-150, RE-250, RE-250 Manual
High-flow models with built-in strainers for bulk dispensing.
• Flow Rate: Up to 250L/min
• Spout Diameter: 25mm to 30mm
• Application: Industrial fueling, bulk tanks
🛠️ Manual & Chemical Nozzles
RE-2000, RE-12A, RE-13A
Lightweight aluminum manual nozzles for small-scale fueling.
• Inlet Thread: BSP/NPT ¾" or 1"
• Surface: Sand-blasted finish
• Flow Rate: Up to 120L/min
• Hose Swivel: 420–340–400mm
RE-5000, RE-6000 Chemical Nozzles
Built for chemical resistance using PP and EPDM materials.
• Application: Acidic and alkaline fluids
• Lightweight and corrosion-resistant
• Ideal for agriculture, industrial cleaning, and chemical transfer
Why Choose Our Nozzles?
• ✅ Wide compatibility with BSP/NPT threads
• ✅ Automatic shut-off and manual control options
• ✅ High-flow models for industrial use
• ✅ Chemical-safe variants for specialized applications
• ✅ Durable construction with ergonomic design

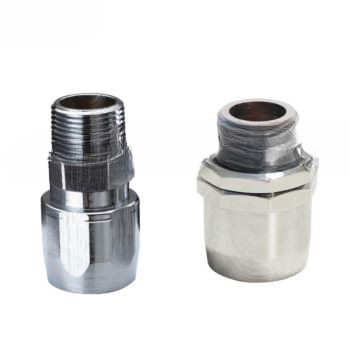

Material: Chromium plating on copper hose coupling
Fuel dispenser hose coupling is designed for use between the hose and the pipe, or between the hose and other equipment.
Features
1)100% factory tested.
2)Thread: NPT, BSPT.
3)Materials: Body: brass
Bushing: Brass
Surface: Electronic chrome plated
4)One year warranty and guarantee
Thread: NPT, BSPT, BSPP

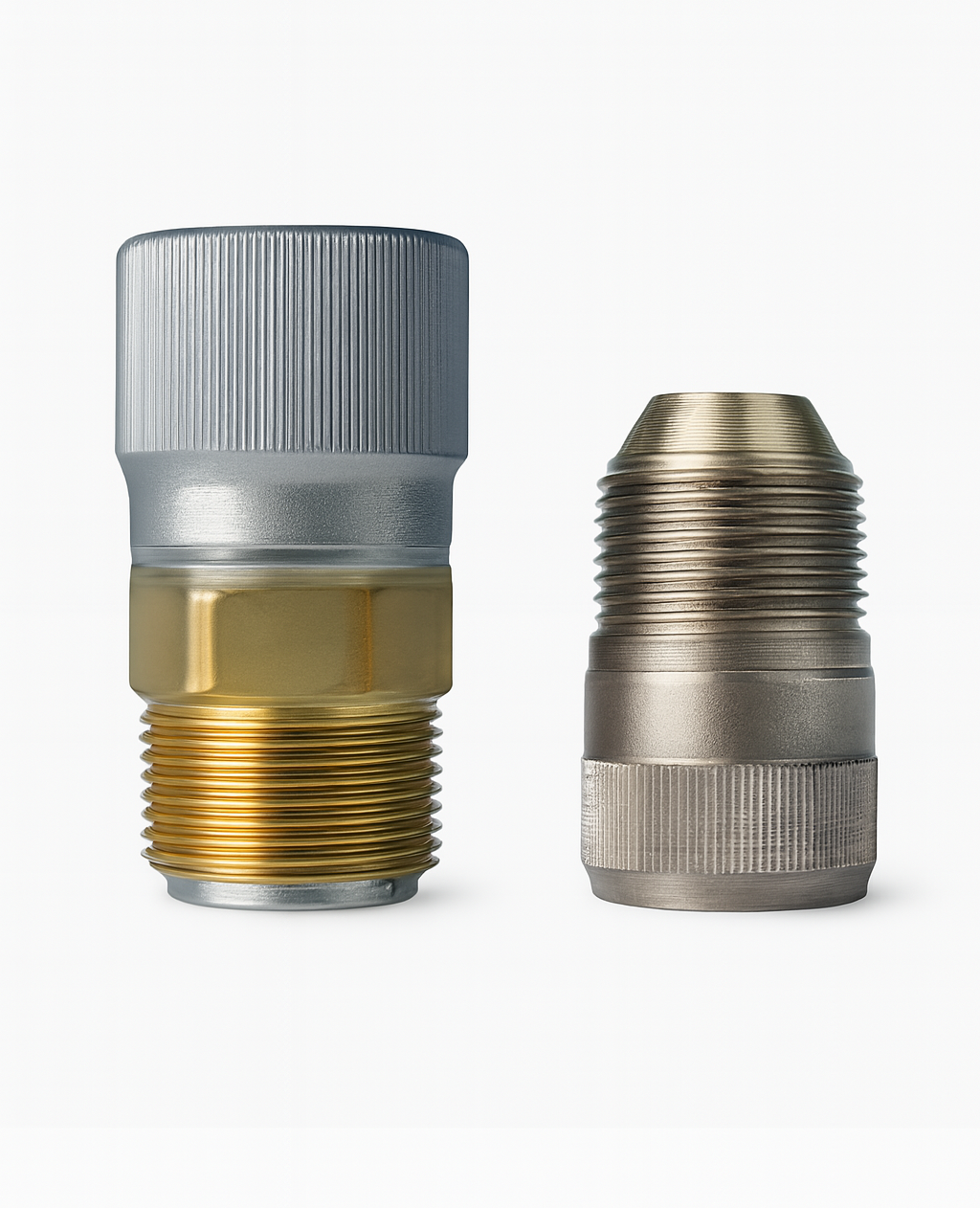

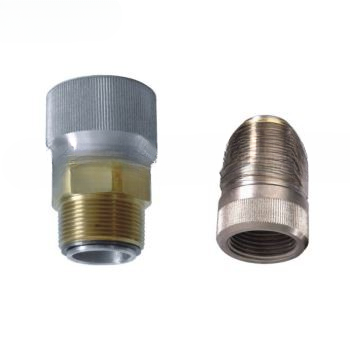

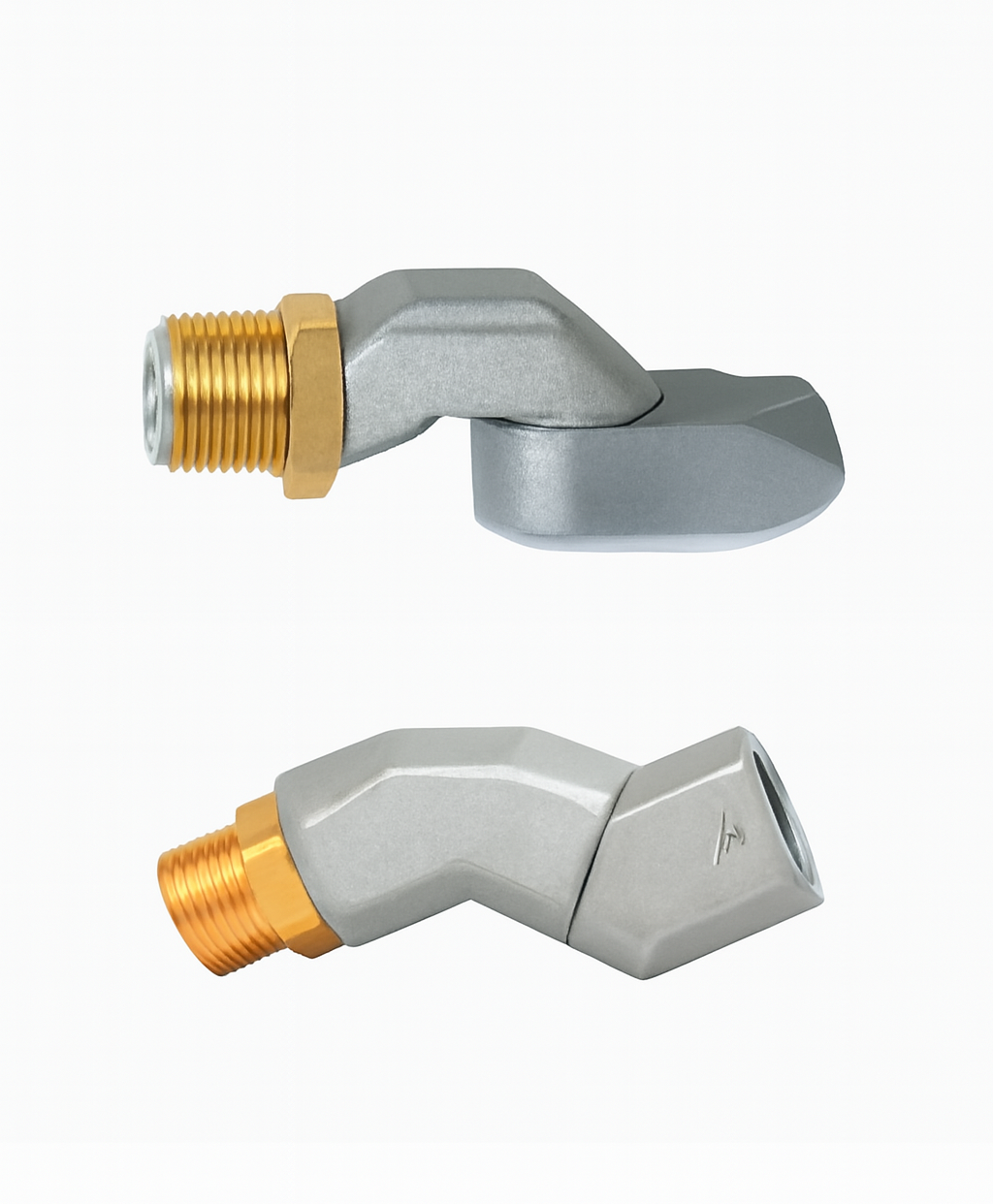

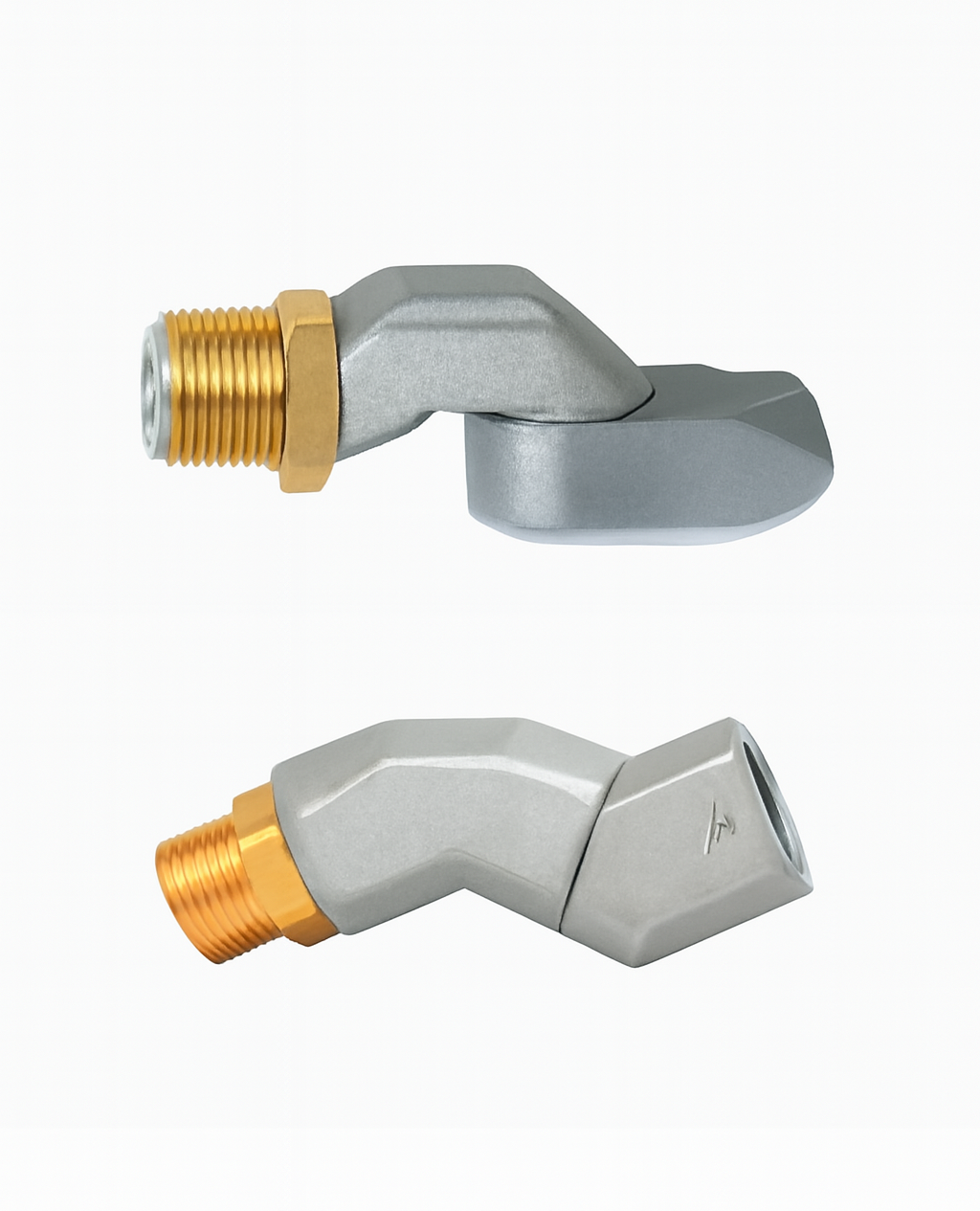

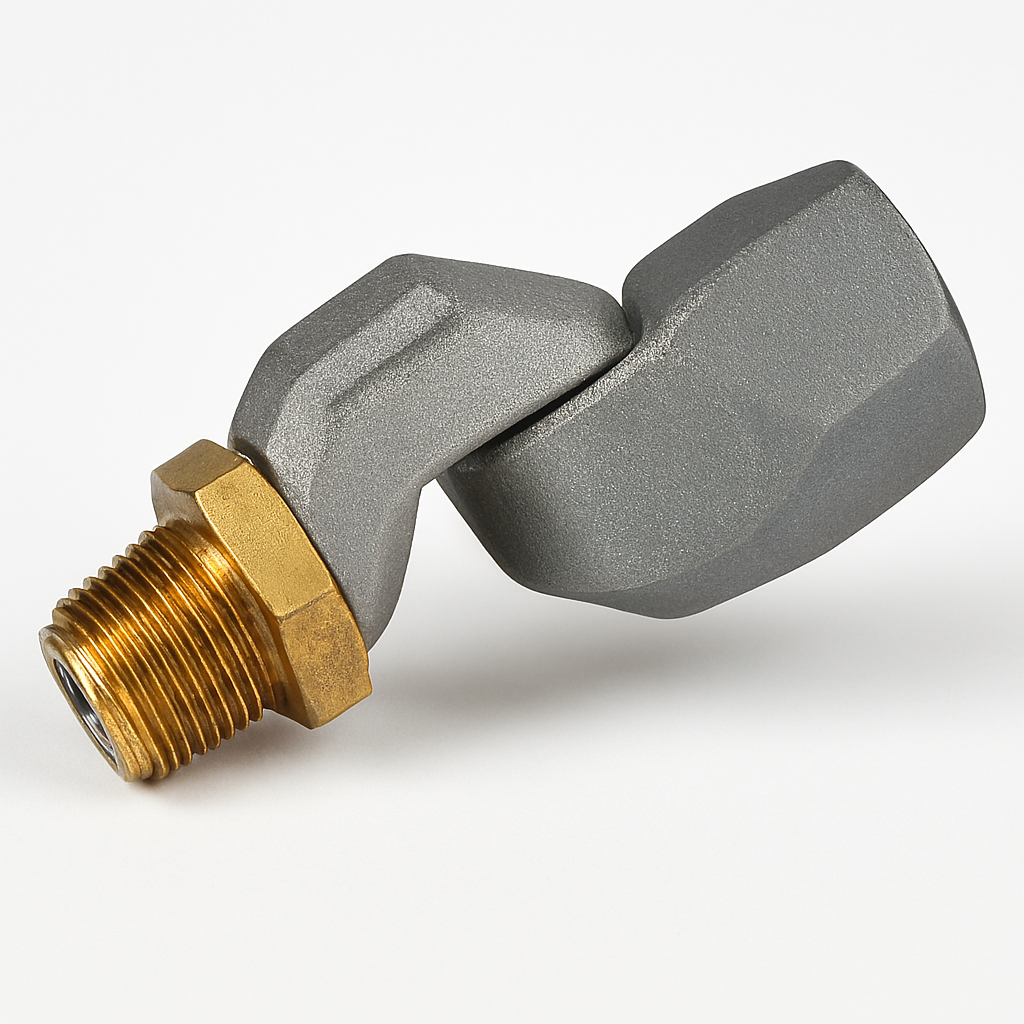

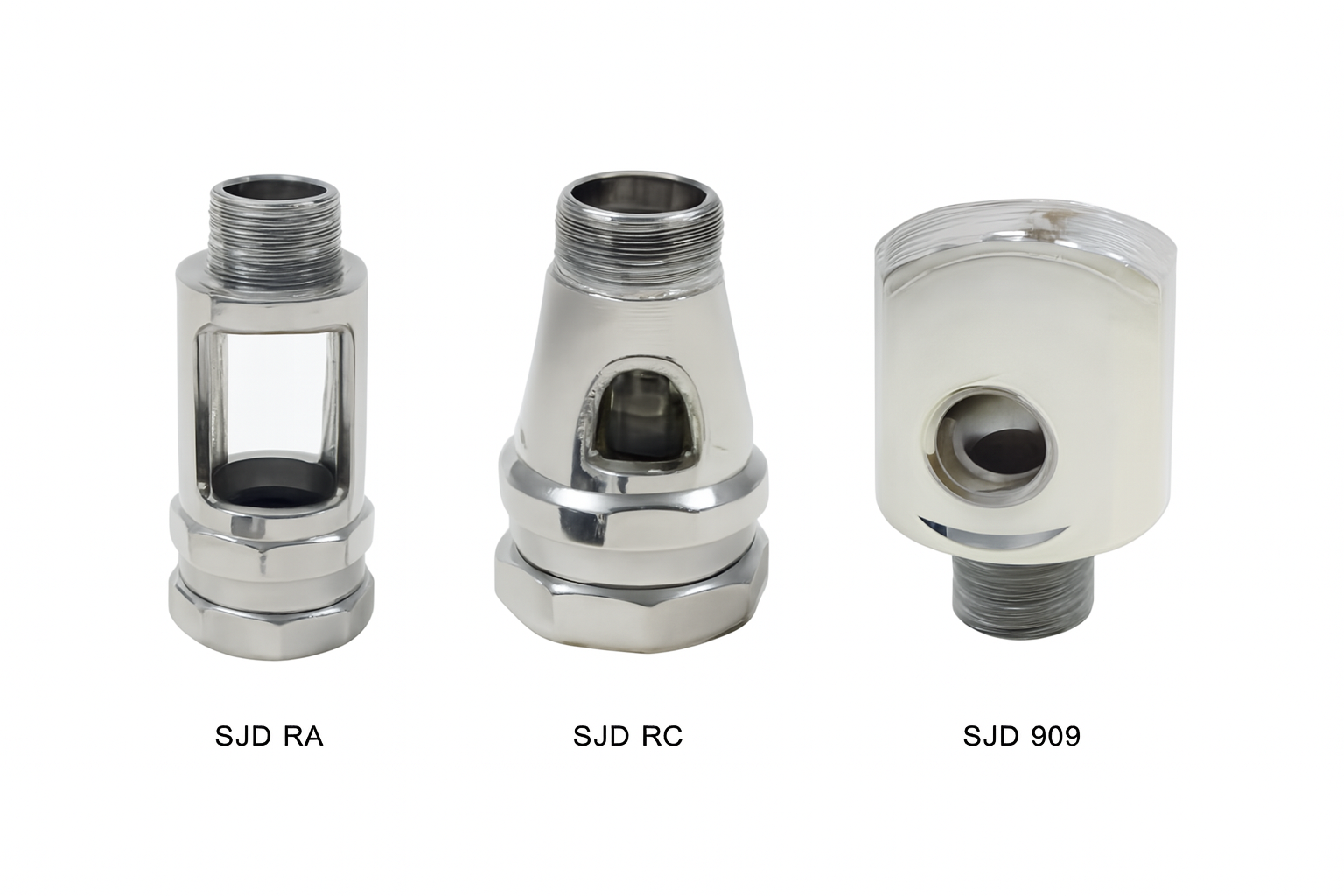

241TPS hose swivel is designed for applications where easy nozzle and hose handling important for customer’s convenience. It is installed between the nozzle and the hose to reduce strain, provides flexibility and reduces premature hose wear.
The 45 swivel(45-5060 Hose Swivel) is designed for gasoline self-service applications where easy nozzle and hose handling is important for customer convenience. The 45 is installed between the nozzle and hose to reduce strain, providing flexibility so fueling hoses last longer.
Used for connecting the nozzle and the hose, 360°swivel action. Connection: Thread BSPF/NPT ¾” & 1”.
Materials
Body: Aluminum
Outlet Adaptor: Zinc
Inlet Adaptor: Zinc
Seals: Buna-N
Description：

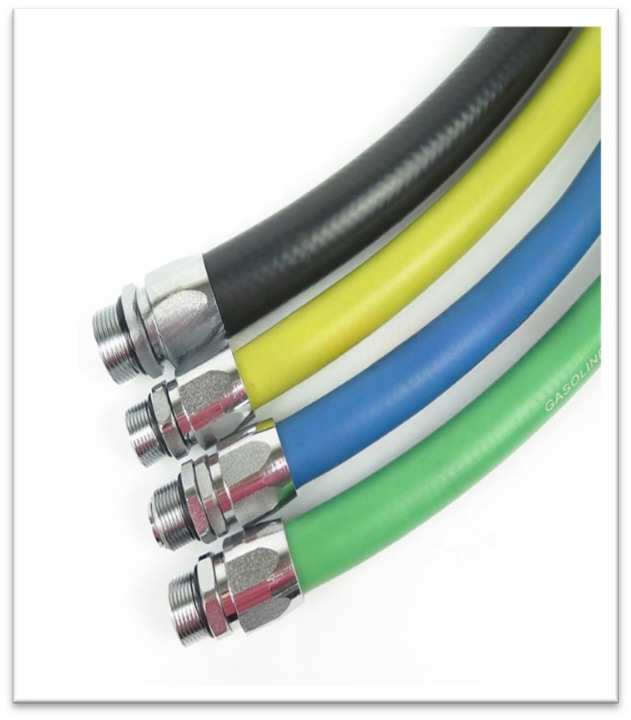

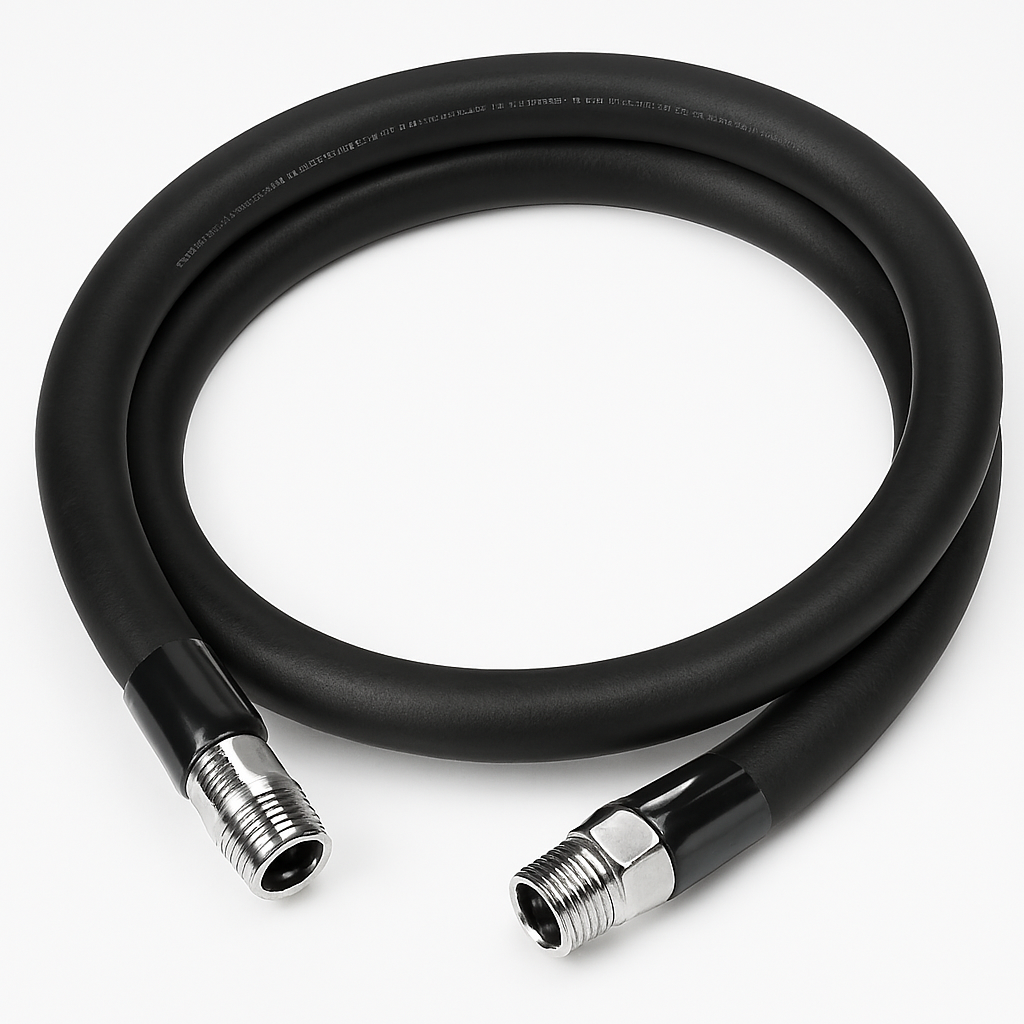

3/4” and 1” Flexible Anti-Static Fuel Dispenser Pump Rubber Hose.
The hose can eliminate static accumulation while oil-delivering
and meet the requirements of fire safety.
1）Application: Suitable for gasoline and diesel fuel, including oxygenated fuels(up to a maximum of 15% oxygenated compounds) gasoline with small amounts of additives etc.
2)Temperature range: -25℃～70℃/-40℃～70℃
3)Inner tube: NBR, Black, Smooth.
4)Reinforcement: Fine wire reinforced, electrically conductive.
5)Cover: Synthetic rubber.
6)Color: Black, red, yellow, blue, green.

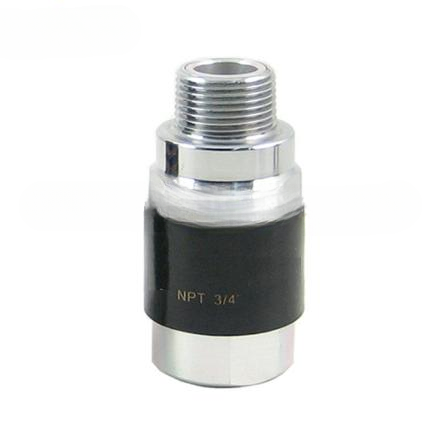

Swivel Breakaway is intended for easy installation at the nozzle inlet. The compact, lightweight design incorporates a 360° swivel rotation at the male end and a one-time breakaway.
1. Technical Specifications
Thread NPT
Max. pull 350LBS±5%
Diameter 3/4 , 1"
Flow range 3/4 0~60L/min
1" 0~90L/min 2.Materials
Body Aluminum Alloy, Brass
Sleeve Nylon
Seals Viton

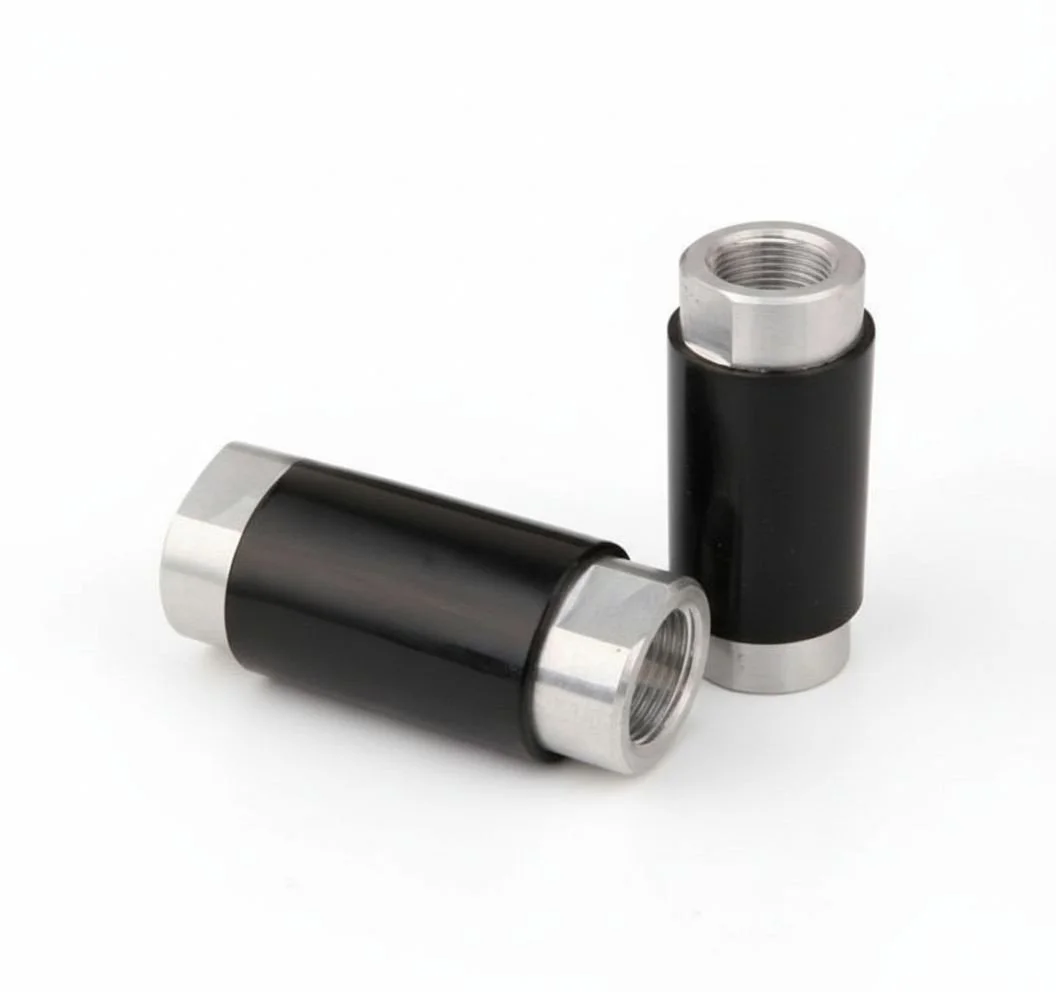

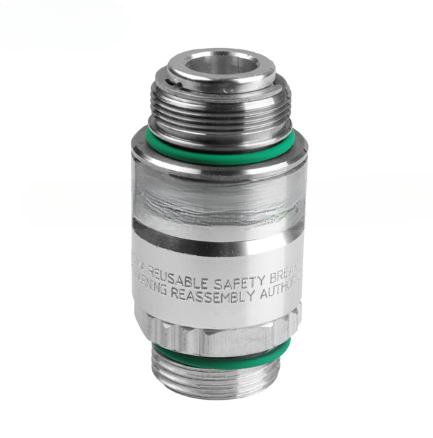

ZVA Reconnectable Breakaway is a self-sealing reusable breakaway coupling designed to protect dispensers, hose assembly and cars against damage which can occur by drive-off incidents.
1. Materials: Body: Aluminum
Main Seals: Viton, polyurethane
2. Technical Specification
Outlet Thread : M34×1.5
Inlet Thread : Female/Male, BSPT/NPT, 3/4”/1”
Pull-off force : From 800N to 1500N
Net Weight : 0.23KG
3. Ordering Specifications:
Item No.
ZVA BW01 Female, BSPT, 3/4”
ZVA BW02 Male, BSPT, 3/4”
ZVA BW03 Female, NPT, 1”
ZVA BW04 Male, NPT, 1”

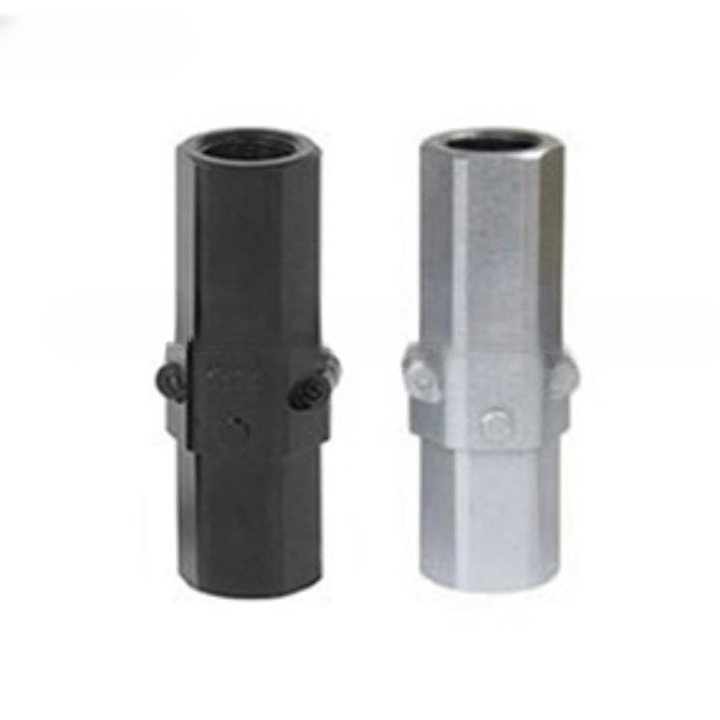

B. RE-TL Breakaway Valve
Specification: NPT / BSPT3/4''×NPT / BSPT3/4'' ( Flow rate: 0-60L/M)
NPT / BSPT 1'' ×NPT / BSPT 1'' ( Flow rate: 0-120L/M)
The OPW 66V Series breakaways(Single Use Breakaway 66V-0300) are designed and rigorously tested for use in today's fuels. Installed on fuel dispensing hoses, they will separate at the designed pull force, reducing expensive damage to the dispenser and piping system. Internal dual valves close automatically during separation, stopping the flow of fuel from both the dispenser and the separated hose, reducing the environmental and health risks of potentially spilt fuel.
A、BC-CH Breakaway Valve
1. Description：
Breakaway Valve is designed to be installed on fuel dispensing hoses and will separate when subjected to a designed pull force. The dual valve seat automatically stops the flow of fuel and limits any fuel spillage, while protecting the dispensing equipment.
Materials: Body: Aluminum
Main Seals: Viton
Main Spring: Stainless steel
Guide and poppet: POM
Protective Sleeve: PVC
2)Thread: NPT, BSPT
3)Working pressure:0.18Mpa
4)100% factory tested.
Media: diesel, kerosene.
Inlet：BSPF/NPT1" Flow rate：60L/min
Power：550W
Power supply：220V,
50Hz
Lift：20meter
Suction：5 meter
Accuracy：±1 %

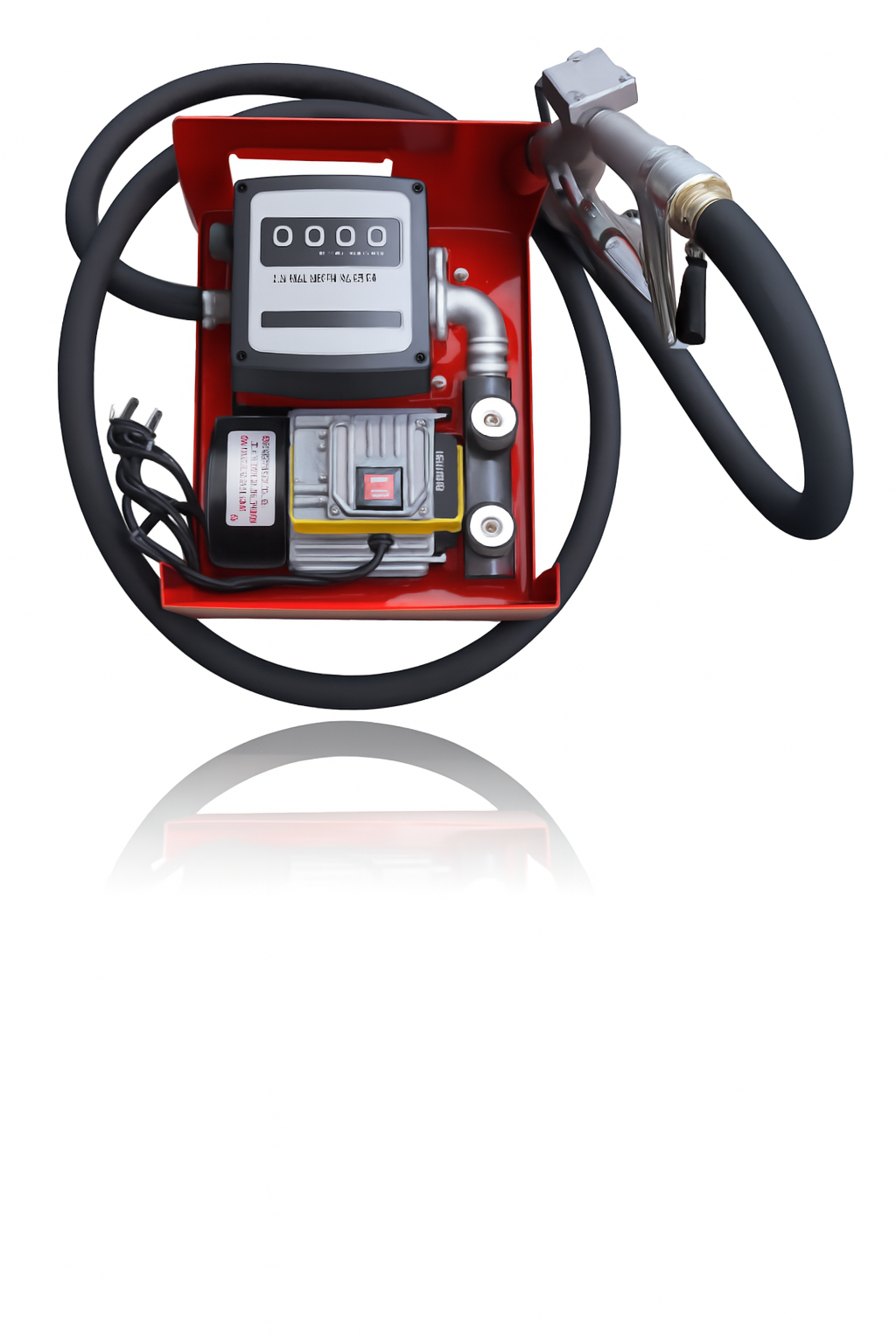

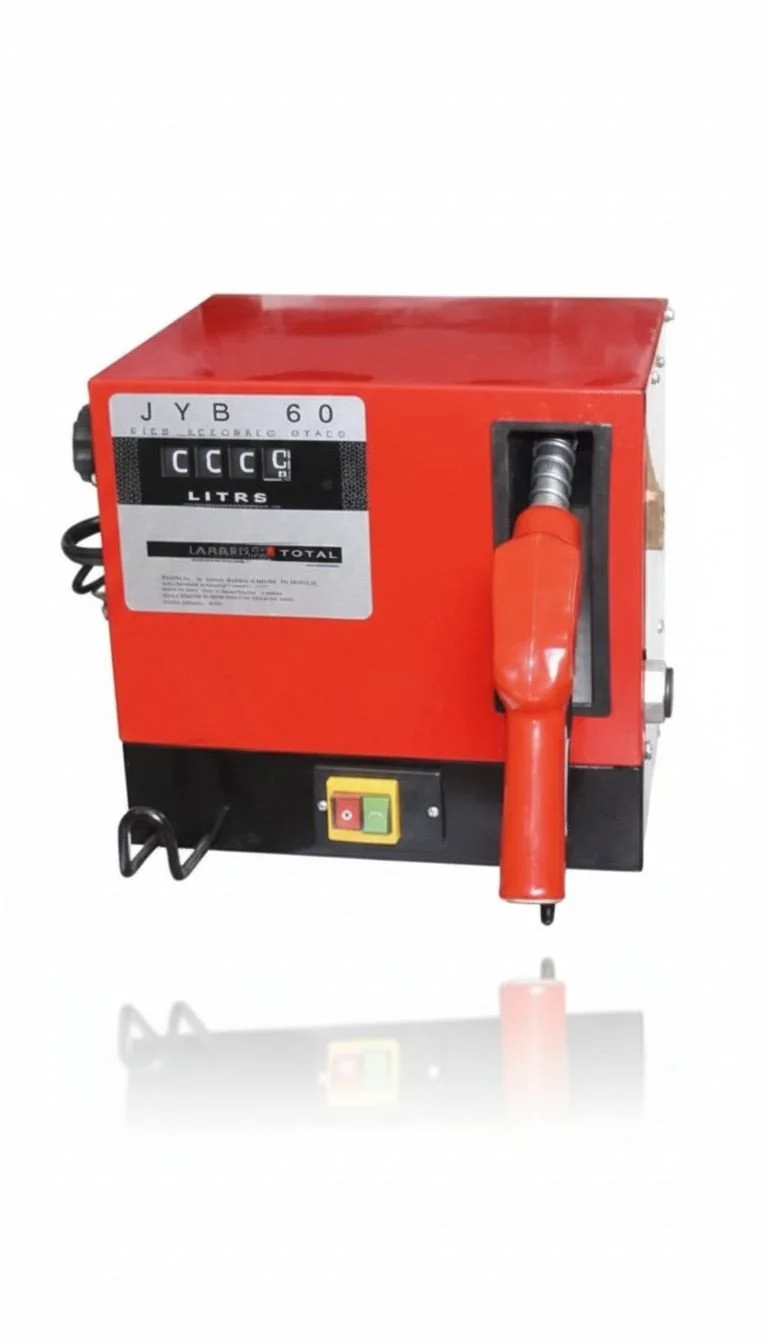

Portable Fuel Transfer Pump JYB-60 has been designed and manufactured to cater for the demand for a compact diesel fuel dispenser for private use. That is easy to install. It can be fitted to a wall, directly on the tank by means of the quick coupling or on a column. In terms of low running costs, compact dimensions and flexibility, together with all-round efficiency, JYB-60 is a truly unique dispenser.
Normally Configure, self-suction Vane Pump, Mechanical Flow meter, 4 meter Hose, Automatic Nozzle. (Mechanical Flow meter can fit customers’ demand in Gallon or Litre)
2. Feature
Diesel Transfer Pump Mini fuel dispenser portable pump for diesel has been designed and manufactured to cater for the demand for a compact diesel fuel dispenser for private use. That is easy to install. It can be fitted to a wall, directly on the tank by means of the quick coupling or on a column. In terms of low running costs, compact dimensions and flexibility, together with all-round efficiency.Normally Configure, self-suction Vane Pump, Mechanical Flow meter, 4 meter Hose, Automatic Nozzle. (Mechanical Flow meter can fit for customers; demand in Gallon or Litre).
DC:12V/24V
Flow rate:40L/Min Media: diesel, kerosene.
Product Specifications
Power Supply: DC 12V/24V
Flow Rate: 40 Liters per Minute
Compatible Media: Diesel, Kerosene
This equipment is designed to efficiently handle fuel transfer for diesel and kerosene applications, suitable for various industrial and commercial uses requiring reliable flow rates at low voltage DC power.
Product Specifications: Diesel and Kerosene Pump
Media: Diesel, Kerosene
Inlet: BSPF / NPT 1"
Flow Rate: 0-40 L/min
Power: 150W
Power Supply: 12V, 24V
Lift: 4 meters
Suction: 15 meters
Accuracy: ±1%
This pump is designed for efficient and precise fuel handling, suitable for applications requiring reliable flow control and robust performance. Ideal for both diesel and kerosene transferring needs, it ensures consistent operation with minimal deviation.
Media: diesel, kerosene.
Inlet： BSPF/NPT1"
Flow rate：0-60L/min
Power：550W
Power supply：220V,
50Hz
Lift：20meter
Suction：5 meter
Accuracy：±1 %

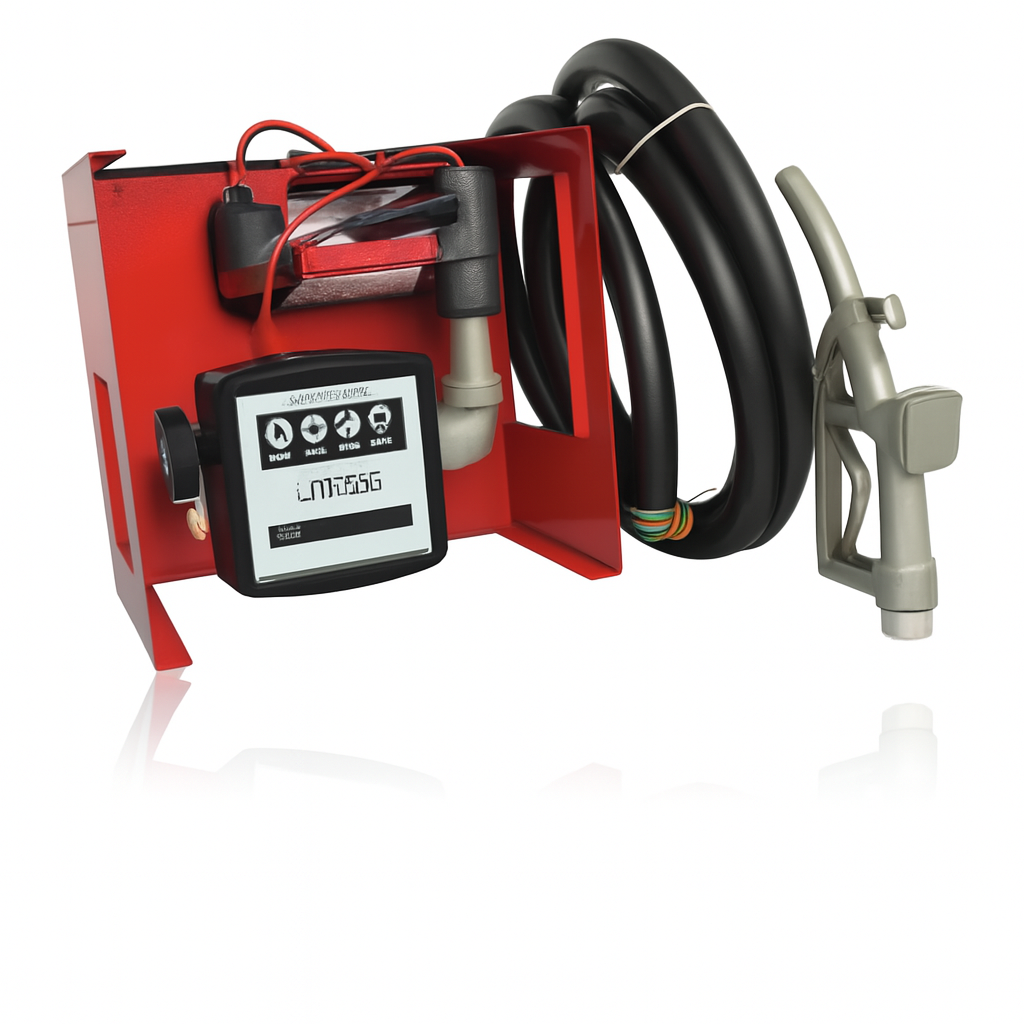

Electric Transfer Pump suitable for diesel oil, kerosene and gasoline transfer, It is easy to connect to 1" quick coupling of the drum or tank, with or without flow meter.
The ETP 40, ETP 60, ETP 80 is special for diesel oil, kerosene oil, not for gasoline, but DYB 50, DYB 75 suitable for diesel oil, gasoline, kerosene and some other light oil liquid transfer. The complete pump set including pump, 4m delivery hose(suction hose for option), manual nozzle (auto nozzle for option), FM-120 mechanical flow meter.
3.Feature
1)Electric fuel transfer pump unit with FM-120 meter in liters, manual nozzle and 4m hose is small size, light and easy carrying.
2)Big flow and strong sucking.
3)Vehicle battery driven, easy and quick.
4)Firmly and stable.
5)Suitable for small gas stations and self-filling for mobile machinery shops, truckers, etc.
6)Work with diesel, machine oil and transformer oil, Forbidden to work with easy explosive oil like gasoline.
7)CE, UCS, CNEX, ISO9001.Certifications.
